In the ever-evolving landscape of electronics, the performance, longevity, and reliability of Printed Circuit Boards (PCBs) are heavily influenced by the surface finish applied to the copper traces. Among several types of finishes available, Immersion Gold (often used in the ENIG process—Electroless Nickel Immersion Gold) has grown increasingly prominent in recent years. This finishing technique offers a unique combination of performance benefits that make it suitable for modern electronics, especially in high-reliability and precision-dependent applications.
This article delves deep into the world of Immersion Gold, offering a comprehensive understanding of what it is, how it functions, its manufacturing workflow, and why it could be the best choice for your next PCB project. Through this discussion, you’ll also gain insights into practical aspects of fabrication and real-world implications for choosing the right finish.

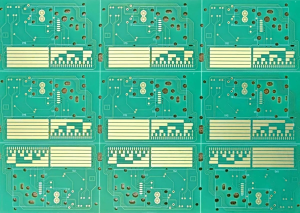

Immersion Gold
Immersion Gold refers to a surface treatment used in PCB manufacturing that deposits a thin layer of gold over a barrier layer of nickel. This process is typically part of the ENIG (Electroless Nickel Immersion Gold) system. The primary purpose of this finish is to protect exposed copper from oxidation while offering a flat, solderable surface. This flatness is particularly advantageous in fine-pitch components, BGA pads, and high-frequency designs where even microscopic variations can affect performance.
The process is governed by a chemical displacement reaction—gold ions in the solution replace nickel atoms on the surface without the use of electricity. This controlled reaction ensures a thin but consistent gold layer that adheres well to the underlying structure.
From an electrical perspective, although gold is an excellent conductor, the layer is often too thin to impact the signal integrity significantly. However, its resistance to corrosion and long shelf life make it an optimal finish for storage and assembly in modern SMT lines.
The reasons for selecting Immersion Gold as a surface finish are multifaceted. Here are the most critical advantages that engineering teams and PCB designers consider:
One of the standout characteristics of Immersion Gold is its flatness. This quality is essential when dealing with fine-pitch components or when surface-mount technology (SMT) is employed. Warping or uneven surfaces can result in poor solder joints, leading to intermittent failures or complete electrical disconnection.
Since gold is chemically inert, it provides excellent protection against oxidation. The nickel layer serves as a barrier to prevent copper diffusion, while the gold coating ensures longevity. This combination is particularly important in harsh environments where PCBs are exposed to moisture, chemicals, or extreme temperatures.
Unlike other finishes, Immersion Gold allows for extended storage without degradation. Components can be soldered weeks or even months after the board is manufactured, making it ideal for just-in-time (JIT) production models.
Gold’s properties also allow for compatibility with wire bonding techniques, especially gold wire bonding, which is a critical requirement in high-end electronics, aerospace, and medical applications.
In the context of RoHS-compliant, lead-free assembly processes, Immersion Gold holds up well under the higher temperatures required for lead-free soldering, maintaining both adhesion and reliability.
Understanding the manufacturing workflow behind Immersion Gold finishes helps highlight why this process yields such desirable characteristics. The method is part of a dual-layer deposition strategy and consists of several well-controlled chemical steps:
The bare copper on the board is first cleaned and lightly etched to remove any oxide layers or contamination. This ensures a pure surface for the nickel to adhere to.
This step involves submerging the board into an electroless bath where a controlled chemical reaction deposits a thin layer of nickel over the copper. This layer usually ranges from 3 to 6 microns thick and acts as both a barrier and a foundational layer for gold.
The board is then immersed in a gold solution where a displacement reaction occurs. The gold ions replace some of the nickel atoms, forming a thin, uniform layer (usually 0.05 to 0.1 microns) over the nickel. This gold is not only solderable but also acts as an anti-corrosive agent.
Once the plating process is complete, the board is thoroughly rinsed to remove residual chemicals and is dried in a clean environment. The result is a board with flat, shiny gold-plated pads that are ready for assembly or storage.
This manufacturing method requires strict process controls to prevent defects such as “black pad,” a condition that leads to poor solderability due to excessive nickel oxidation. Quality manufacturers like JM PCB implement rigorous inspection and testing protocols to ensure defect-free production.
In the competitive landscape of consumer electronics—smartphones, laptops, wearable devices—designers are constantly challenged to produce compact, high-performance products. Immersion Gold finishes play a critical role in enabling this miniaturization due to their superior flatness, which allows for accurate placement of BGA and micro-BGA components.
These devices also require boards that can endure repeated thermal cycling. The chemical stability of Immersion Gold ensures longer shelf life and consistent solderability, which are essential in consumer goods with high production volumes and tight assembly schedules.
Mission-critical electronics in the aerospace and defense sectors demand an extraordinary level of reliability and corrosion resistance. Immersion Gold surfaces offer predictable behavior under harsh environmental conditions—extreme temperature changes, vibration, and chemical exposure—making them the go-to finish for applications like satellite systems, avionics, radar systems, and military-grade communication devices.
Moreover, the compatibility with gold wire bonding makes this finish ideal for advanced microelectronics assemblies found in satellites and missiles, where every connection must be precise and dependable.
The healthcare industry has seen a technological revolution, with medical diagnostic tools, implantable devices, and portable monitors relying on complex PCBs. Immersion Gold is highly favored in this field due to its biocompatibility and clean surface properties, ensuring not only operational reliability but also safety.
Manufacturers producing these critical systems turn to dependable partners like JM PCB, whose commitment to cleanroom environments and ISO-certified processes ensures quality for even the most sensitive applications.
With the rise of electric vehicles (EVs), ADAS systems, and in-vehicle infotainment, the electronics content in automobiles has surged. Immersion Gold supports the necessary reliability and thermal stability for automotive-grade PCBs, especially in engine control units (ECUs), battery management systems, and LiDAR assemblies.
These systems are often exposed to fluctuating temperature ranges and high humidity, environments where the anti-corrosive and high-solderability nature of Immersion Gold finishes makes them superior to conventional options.
In industrial automation, downtime is costly. PCBs in programmable logic controllers (PLCs), sensors, and motor control systems benefit from Immersion Gold finishes because they maintain stable electrical performance over time, even in high-vibration, dusty, or high-humidity environments. This reliability reduces the need for frequent maintenance and prevents failures that could halt entire production lines.
| Feature | Immersion Gold | HASL (Lead-Free) |
|---|---|---|
| Surface Flatness | Excellent | Poor to Moderate |
| Solderability | Excellent | Good |
| Lead-Free Compliance | Yes | Yes |
| Shelf Life | Long | Shorter |
| Wire Bonding | Yes | No |
| Cost | Moderate | Low |
HASL, while inexpensive, introduces surface unevenness, which can lead to solder bridging in fine-pitch layouts. Immersion Gold eliminates this issue by providing a smooth, even surface.
OSP is cost-effective and environmentally friendly but has limited durability and shelf life. It also cannot be used in wire bonding applications. In contrast, Immersion Gold supports high-reliability manufacturing and is suitable for storage over extended periods, making it more versatile despite its higher cost.
ENEPIG adds a palladium layer between nickel and gold, enhancing performance for wire bonding and solder joint reliability. While ENEPIG is superior for specific high-end applications, it is also significantly more expensive. Immersion Gold strikes a practical balance for most high-reliability commercial applications.
When designing PCBs that will receive an Immersion Gold finish, pad geometry and layout must be precise to avoid common manufacturing defects. Designers should use solder mask-defined (SMD) pads in high-density areas to reduce potential for bridging and ensure consistent solder volume.
“Black Pad” is a known issue in poorly controlled Immersion Gold processing, where nickel corrosion leads to poor solder joint reliability. Designers should work with trusted manufacturers like JM PCB, who apply stringent process controls to maintain optimal nickel plating and gold deposition conditions.
Due to the finish’s thin gold layer, standard SAC (Tin-Silver-Copper) solder pastes are compatible with Immersion Gold PCBs. However, designers should verify reflow profiles and pad spacing, especially in multi-reflow operations, to maintain solder joint integrity.
Immersion Gold offers good thermal stability, but in high-power applications, designers must integrate thermal vias and copper pours to dissipate heat effectively. The finish itself does not influence thermal conductivity, but its compatibility with SMT heatsinks and components is an advantage.
While Immersion Gold is more costly than basic OSP or HASL finishes, the improvement in solderability, yield rates, and long-term reliability often offsets the initial investment. For products with extended lifecycle expectations or strict performance benchmarks, it is usually the more cost-effective option long-term.
As electronics grow smaller and more powerful, Immersion Gold is set to become increasingly important, not just as a legacy finish but as a backbone for modern miniaturized designs. However, the industry faces some evolving challenges and opportunities:
Gold is a precious and finite resource, and the plating chemicals used in immersion processes are under scrutiny for their environmental impact. Forward-thinking manufacturers are investing in closed-loop plating systems and non-cyanide gold solutions to make Immersion Gold more sustainable without compromising quality.
Process variability in ENIG can lead to defects, so future production lines will increasingly rely on AI-driven quality monitoring. Predictive algorithms will help in identifying plating inconsistencies before they result in defects, further improving yield and reliability.
The rising demand for advanced packaging (e.g., chiplets, 2.5D interposers) is pushing the performance requirements of surface finishes. Enhanced versions of Immersion Gold, or hybrid finishes with palladium enhancements, may become more prevalent in these areas.
As device form factors become more diverse, hybrid PCBs that combine rigid and flexible areas are gaining popularity. These applications require adaptable finishes. While Immersion Gold is mostly used in rigid boards, innovations may soon make it more flexible-compatible.
Historically, Immersion Gold was reserved for premium or mission-critical applications due to cost. However, as plating technology becomes more efficient and accessible, we may see its broader adoption even in mid-range consumer products.
One of the most notorious defects associated with Immersion Gold is the “black pad” issue. This occurs when the nickel layer corrodes excessively before the gold is applied, resulting in a brittle or poorly solderable surface. Visually, the nickel surface may appear dull, with dark or pitted spots beneath the gold.
High phosphorous content in the electroless nickel layer
Excessive dwell time in the gold bath
Poor bath chemistry control or contamination
Partner with PCB manufacturers like JM PCB that maintain tight process control over plating chemistry.
Regularly test and filter the plating baths.
Use in-line inspection and cross-sectional analysis to monitor the nickel/gold interface.
Another issue occasionally encountered in Immersion Gold processing is non-uniform gold thickness. This may affect soldering and corrosion resistance.
Inconsistent bath agitation → Use optimized flow design
Improper temperature control → Maintain strict thermal monitoring
Depleted gold solution → Replenish chemicals on a consistent schedule
Excessive corrosion of nickel can lead to delamination or poor bonding in surface-mount areas. This is usually caused by aggressive or unbalanced immersion gold solutions. Again, working with manufacturers who implement SPC (Statistical Process Control) techniques helps eliminate such defects.
Poor adhesion between copper, nickel, and gold layers often results from inadequate surface preparation. Proper microetching before plating is essential. Manufacturers should avoid over-etching which can degrade copper integrity.
Choosing the right PCB surface finish is never a one-size-fits-all decision. Each industry has distinct demands that drive the selection process.
In smartphones and wearables, Immersion Gold is chosen selectively for critical signal or BGA pads, while other areas might use OSP to reduce costs. When mass production yield and fine-pitch reliability are essential, ENIG becomes the default choice.
These sectors overwhelmingly prefer Immersion Gold due to its long-term stability and compatibility with gold wire bonding. The initial cost is justified by the mission-critical nature of the applications.
While HASL was traditionally used, the shift to compact ECUs and BMS modules in electric vehicles has made Immersion Gold more common, especially when long-term solderability or multi-reflow resistance is needed.
Medical device PCBs must meet FDA or CE standards. The non-toxic nature and stable surface of Immersion Gold make it ideal for sensitive diagnostic equipment and wearable health tech.
In factories or outdoor equipment, Immersion Gold is used in systems requiring multiple assembly passes or long field lifespans. Other lower-cost options might be used for less critical modules.
To ensure consistent performance, PCBs with Immersion Gold undergo rigorous inspection protocols:
Performed under magnification to check for surface discoloration, pitting, or oxidation. Any sign of black pad or delamination warrants further testing.
Used to verify the thickness of both the nickel and gold layers. The IPC-4552 standard provides guidelines for acceptable thicknesses:
Nickel: 3–6 µm
Gold: 0.03–0.1 µm
This destructive method allows engineers to examine the integrity of copper-nickel-gold interfaces and identify micro-cracks or corrosion.
Performed to assess wetting and bonding characteristics. Boards are typically subjected to simulated reflow cycles to confirm reliable solder joints.
Used to determine how well the metal layers adhere to the substrate. Poor adhesion may suggest issues in the microetch or plating steps.
Rolled copper foil is manufactured through a physical rolling process, resulting in better mechanical properties, smoother surfaces, and improved bending resistance. It’s ideal for flexible circuits and precision applications.
Electrolytic copper foil is deposited using an electrochemical process. While more cost-effective and easier to mass-produce, it has a rougher surface and slightly inferior mechanical strength compared to rolled foil.
Immersion Gold provides a much flatter surface than HASL (Hot Air Solder Leveling), making it suitable for tiny components and high-density mounting. HASL may cause solder bridging or uneven solder joints in fine-pitch applications.
The gold layer in Immersion Gold is typically between 0.05 to 0.1 microns. This thickness is enough to protect the nickel layer from oxidation but is not thick enough to significantly affect conductivity or cost.
While possible, Immersion Gold is not always the best choice for flex PCBs due to the rigidity of the nickel layer. Alternatives like ENEPIG or OSP are often preferred in flexible applications unless specific bonding or surface requirements dictate otherwise.
Yes. Immersion Gold, especially when performed in RoHS-compliant facilities, avoids the use of lead and toxic chemicals. The controlled processes ensure waste treatment and recycling are effectively managed, making it an environmentally responsible choice.
Design for Manufacturability (DFM) is a crucial discipline in PCB engineering, particularly when using complex surface finishes like Immersion Gold. A seemingly small oversight in layout or pad geometry can lead to severe yield issues or expensive rework.
Proper DFM practices ensure that the Immersion Gold finish not only meets theoretical expectations but also performs well under actual manufacturing and assembly conditions.
The choice between solder mask-defined (SMD) and non-solder mask-defined (NSMD) pads has significant implications for the success of Immersion Gold. NSMD pads are typically preferred for BGAs and fine-pitch components, as they offer more consistent plating coverage and reduce the chance of pad lifting.
Immersion Gold requires consistent chemical exposure during plating. Poor panelization—such as irregular copper density—can create uneven gold deposition across different sections of the board. DFM tools should simulate plating flow to identify potential plating imbalances early in the design.
Designers should avoid leaving exposed copper traces near gold-plated pads, especially if they won’t be covered by soldermask. This can lead to unintended immersion plating on traces, causing inconsistent performance and costly touch-ups.
The nickel layer used in Immersion Gold can slightly impact signal reflection. For high-speed circuits, traces should be carefully routed with matched impedance and proper ground shielding. DFM verification can flag layout anomalies that compromise signal integrity.
When outsourcing to a PCB fabricator, especially for Immersion Gold, clear documentation is essential. Include the following:
Surface Finish: ENIG (Electroless Nickel Immersion Gold)
Gold Thickness Requirement: e.g., 0.05–0.1 µm
Nickel Thickness Requirement: e.g., 3–6 µm
IPC Class: Class 2 for general electronics, Class 3 for high reliability
Reference Standard: IPC-4552 or latest revision
Before awarding a job, ask your manufacturer:
What controls are in place to prevent “black pad”?
How do you verify gold/nickel thickness?
Are your ENIG processes RoHS-compliant?
Can you handle fine-pitch ENIG for BGA pads below 0.4 mm?
JM PCB, for example, offers a comprehensive DFM review service, ensuring that the Immersion Gold requirements are compatible with manufacturing capabilities from the start.
Ask yourself the following:
Is my product high-reliability or high-density?
Will the board go through multiple reflow cycles?
Is flatness critical for BGA or QFN components?
Will there be long storage periods before assembly?
If you answered “yes” to most of these, Immersion Gold is likely the right finish. In contrast, for cost-sensitive, low-complexity boards with simple through-hole components, HASL or OSP may suffice.
Although Immersion Gold adds cost upfront, it may reduce long-term expense by minimizing soldering issues, rework, and RMAs. Evaluate the total cost of ownership, not just the initial fabrication price.
If your contract manufacturer uses automated optical inspection (AOI) or X-ray inspection, Immersion Gold can improve detection clarity due to its reflective and consistent surface. It’s also beneficial if selective soldering, wire bonding, or press-fit connectors are used.
In summary, Immersion Gold represents a powerful balance of cost, reliability, and performance, especially for PCBs that demand:
High-density mounting (BGA, CSP, QFN)
Long shelf life with minimal oxidation
Multi-reflow soldering compatibility
Flat and clean surfaces for inspection and soldering
Moderate cost with high return on performance
While the finish does carry additional processing complexity and cost, these are more than justified in industries such as aerospace, medical, automotive, industrial automation, and advanced consumer electronics.
