If you’re asking “what is pcb board made of,” you’re not alone. Many purchasing managers, engineers, and OEM leaders want to know what’s actually inside a PCB board before they trust a supplier. But here’s the kicker… The bill of materials directly impacts product performance, life span, compliance, and your bottom line. So let’s break it down simply.
The primary materials in any PCB board are:
The substrate (core), usually FR4 epoxy glass, polyimide, or other advanced composites
Copper foil, which forms the conductive circuit
Prepreg/laminate resin for multilayer adhesion
Solder mask, usually green, which insulates and protects traces
Silkscreen, for labeling and component ID
Surface finish, such as HASL, ENIG, OSP, which protects copper and ensures solderability
Ready for the good part? The choice of each of these materials changes everything—from cost per square meter to UL recognition and lead times. For example, switching from FR4 to polyimide can boost thermal performance, but costs jump. Your copper thickness choice determines how much current the PCB can safely carry. And surface finish is the difference between successful BGA assembly and recurring field failures.
Here’s a summary of the main layers and their business relevance:
Layer | Typical Materials | Core Business Function |
---|---|---|
Substrate | FR4, polyimide, CEM-1, Rogers, aluminum | Mechanical structure, insulation |
Copper | Electrolytic copper foil | Conductive circuit paths |
Prepreg/Laminate | Epoxy, polyimide resin | Binds layers, provides insulation |
Solder Mask | Epoxy, liquid photoimageable (LPI) | Prevents shorts, protects copper |
Silkscreen | Epoxy ink | Identification marks, polarity info |
Surface Finish | HASL, ENIG, OSP, Immersion Silver/Tin | Prevents copper oxidation, aids SMT |
What’s the real story? There’s no universal “best” material set. Each application—automotive, consumer, industrial—calls for its own stack-up. Let your PCB supplier know your end use, and they can help you balance cost, reliability, and compliance.

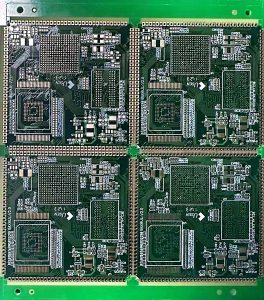

What Is PCB Board Made Of?
When considering “what is pcb board made of,” the substrate is the backbone. This is where it gets interesting… The substrate determines rigidity, dielectric constant, heat resistance, and more. Standard PCBs use FR4, a woven glass/epoxy laminate, for its cost-effectiveness and electrical insulation.
Want higher temperature tolerance? Polyimide substrates shine in aerospace or automotive. Need RF performance? Rogers or Teflon-based substrates offer ultra-low loss, vital for telecom.
But wait—there’s more! The wrong substrate can sabotage your whole assembly. FR4 may warp under high reflow temps, while ceramics can crack if handled poorly. Always match the substrate to your assembly method and environment.
Compare typical substrates:
Substrate Type | Max Temp (°C) | Dielectric Constant | Typical Application |
---|---|---|---|
FR4 | 130-140 | 4.4-4.8 | Consumer, industrial |
Polyimide | 250+ | 3.7-4.2 | Automotive, aerospace |
Rogers/High-Freq | 200+ | 3.0-3.7 | RF, microwave |
Aluminum | 150-180 | 4.0-4.6 | LED, power electronics |
CEM-1 | 110-120 | 4.5-5.0 | Low-cost appliances |
Ready for the good part? If you’re building a high-power LED array, choose aluminum substrate for cooling. If you need flexible PCBs for dynamic bending, go with polyimide.
If someone asks “what is pcb board made of,” copper is the headline act. But here’s the kicker… Copper forms all the traces, planes, and vias—the actual electronic circuits.
The thickness of copper layers, measured in ounces per square foot (oz/ft²), can be tailored. Standard is 1oz (35μm), but high-current boards use 2oz, 3oz, or more.
Here’s why this matters:
Heavy copper allows higher currents, essential for power supplies, motor drives, and industrial controllers
Thicker copper dissipates heat better, reducing failure rates
Finer copper lets you shrink feature sizes for dense smartphone PCBs
Here’s a quick table of copper options:
Copper Weight | Thickness (μm) | Max Current (A) | Use Case |
---|---|---|---|
0.5 oz/ft² | 18 | <1 | Signal, low-power |
1 oz/ft² | 35 | 1-2 | Most electronics |
2 oz/ft² | 70 | 2-5 | Power, relays, LEDs |
3+ oz/ft² | 105+ | 5+ | Power, high temp |
What’s the real story? Your PCB board’s copper thickness isn’t just a spec—it’s a safety margin for your devices.
When breaking down “what is pcb board made of,” don’t ignore the glue—literally. But here’s the kicker… Prepreg is the resin-soaked fiberglass layer that bonds copper foil to the core and to other copper layers in multilayer PCBs. Laminate is the cured sandwich of copper-prepreg-copper that forms each finished layer.
Prepreg choice affects:
Insulation resistance (think: safety and EMC)
Layer registration in multilayer builds
Delamination risk in reflow or thermal cycling
Business impact? Inconsistent prepreg thickness or poor curing can cause field failures that will wreck your reputation.
See prepreg/laminate types:
Prepreg/Laminate | Resin Type | Key Features | Application |
---|---|---|---|
FR4 | Epoxy | Standard, cost-effective | Most boards |
High Tg FR4 | Epoxy | High temp, RoHS | Lead-free assembly |
Polyimide | Polyimide | Flex, high temp | Flexible/Rigid-flex |
Halogen-Free | Epoxy | Eco-friendly | Green applications |
Ready for the good part? If you’re building for medical or green tech, specify halogen-free to stay compliant.
For anyone who wonders “what is pcb board made of,” solder mask is the colored coating—usually green, but available in black, white, red, blue, and more. But here’s the kicker… Solder mask prevents solder bridges, shorts, and corrosion. Without it, hand or automated assembly would be a nightmare.
Different types include:
Epoxy liquid (most common, low cost)
LPI (liquid photoimageable), used for fine-pitch SMT
Dry film, for extremely fine features
Solder mask directly impacts yield, especially for 0.5mm pitch and below.
Solder Mask Type | Color Options | Application | Benefit |
---|---|---|---|
Epoxy Liquid | Green, red | Standard | Low cost |
LPI | Green, black | High-density, SMT | Fine feature |
Dry Film | Green | Ultra-fine SMT | Precise definition |
What’s the real story? Choosing the wrong solder mask can increase defects and returns—don’t cut corners.
Silkscreen is what puts component labels, orientation marks, and logos on your PCB. But here’s the kicker… Clear silkscreen saves hours of debugging and speeds up manufacturing. Messy or missing silkscreen leads to errors, delays, and higher labor costs.
Modern silkscreen inks are high-contrast epoxy. They’re resistant to flux and solvents, but if you need maximum durability (outdoor/automotive), ask for UV-cured or dual-side print.
Silkscreen Feature | Common Use | Note |
---|---|---|
Component ID | Assembly, repair | Speeds up processes |
Polarity marks | Diodes, ICs | Reduces assembly error |
Company logo/text | Branding, trace | Enhances traceability |
Ready for the good part? Specify font size, color, and location to match your assembly needs.
Surface finish is vital in “what is pcb board made of”—it prevents copper oxidation and ensures solderability. But here’s the kicker… Each finish offers different shelf life, soldering ease, and cost.
Main types include:
HASL (hot air solder leveling, lead or lead-free)
ENIG (electroless nickel immersion gold)
OSP (organic solderability preservative)
Immersion silver/tin
Hard/soft gold for edge contacts
Surface Finish | Key Property | Best For |
---|---|---|
HASL | Low cost, common | Through-hole, mass mfg |
ENIG | Flat, high quality | SMT, BGA, fine pitch |
OSP | Eco-friendly, flat | Lead-free SMT, low cost |
Imm. Silver | Excellent soldering | Fine pitch, RF |
Imm. Tin | Good soldering | Fine pitch, cost-saving |
What’s the real story? Your choice will affect assembly yield, cost, and reliability—work with your supplier for best results.
Let’s be clear: “what is pcb board made of” isn’t just a mechanical question. But here’s the kicker… Dielectric constant, loss tangent, copper thickness, and surface roughness directly affect high-frequency performance, impedance, and EMI.
For RF, loss tangent and Dk consistency matter most. For high-speed digital, surface finish and prepreg quality affect impedance and signal integrity.
A quick comparison:
Material | Dk Value | Loss Tangent | Typical Use |
---|---|---|---|
FR4 | 4.4 | 0.02 | General electronics |
Rogers 4350 | 3.5 | 0.0037 | RF, high-speed |
Polyimide | 3.8 | 0.017 | Flex, automotive |
CEM-1 | 4.7 | 0.025 | Cost-sensitive |
Ready for the good part? Small tweaks to materials can fix EMI, crosstalk, or signal issues before they cost you.
PCB stack-up refers to the order and type of layers used. But here’s the kicker… The stack-up impacts everything: EMI, thermal performance, cost, and manufacturability.
For example, a 4-layer board is common for industrial controls; an 8-layer board is used for high-speed routers.
Layer Count | Typical Use | Notes |
---|---|---|
2 | Simple consumer, LED | Low cost |
4 | Industrial, basic digital | Power, GND planes |
6-8 | High-speed, servers | Controlled impedance |
10+ | Telecom, RF, avionics | Costly, complex |
What’s the real story? The wrong stack-up causes EMC or assembly nightmares—always optimize it early.
Material choice is a top driver of “what is pcb board made of” from a business view. But here’s the kicker… More advanced materials mean higher cost, but better reliability and lower field failure rates.
Price comparison:
Material | Relative Cost ($/m²) | Notes |
---|---|---|
FR4 Standard | 1 (baseline) | Most cost-effective |
High Tg FR4 | 1.5 | Lead-free, higher temp |
Polyimide | 2-3 | Flex, high temp, costly |
Rogers/Teflon | 5+ | RF, high speed, expensive |
Aluminum | 1.2-2 | Power, LED, moderate |
Ready for the good part? Spec only what you need—over-specifying adds cost with little benefit.
The PCB industry must meet RoHS, REACH, halogen-free, and other rules. But here’s the kicker… Non-compliance means lost business, fines, and reputation damage.
Checklist:
Regulation | Applies To | Main Impact |
---|---|---|
RoHS | Europe/global | Bans lead, Hg, PBB, etc |
REACH | EU | SVHC, chemical limits |
Halogen-Free | Green/medical/auto | Safer for environment |
What’s the real story? Make sure your BOM is certifiable—request COC, MSDS, and batch records from your PCB supplier.
After your PCB is built, it needs to be assembled with components. But here’s the kicker… The material choice affects solderability, heat cycling, and final yield.
Key points:
Surface finish and solder mask color impact automated optical inspection (AOI)
Poor copper adhesion means lifted pads during assembly
Incompatible laminates can delaminate during reflow
Assembly process snapshot:
Step | Key Material Impact | Risk |
---|---|---|
Solder Paste | Surface finish affects wetting | Cold joints |
Placement | Silkscreen, pad shape matter | Placement errors |
Reflow/Oven | Tg of substrate, copper thickness | Delamination, warping |
AOI | Solder mask color/contrast | Missed defects |
What’s the real story? Material mistakes show up as field returns—don’t cut corners.
“PCB board made of” low-quality materials will show up as field failures and manufacturing headaches. But here’s the kicker… The defects can be prevented by understanding your material stack.
Common defects:
Defect | Root Material Cause | Solution |
---|---|---|
Delamination | Poor prepreg/laminate | Control humidity/temp |
Pad lifting | Low copper adhesion | Better surface prep |
Solder bridging | Wrong solder mask | Use LPI or better |
Oxidation | Poor surface finish | Specify ENIG/OSP |
Poor labeling | Weak silkscreen ink | Use epoxy/UV ink |
Ready for the good part? Fix the root cause, not just the symptom.
When buying PCBs, ask detailed questions. But here’s the kicker… Don’t settle for vague answers.
Checklist:
What is the exact substrate material? (Brand, Tg, halogen content)
Copper weight for each layer?
Surface finish RoHS compliant?
Prepreg details (resin content, thickness)?
Documentation available (UL, COC, MSDS)?
Question | Why It Matters |
---|---|
Substrate/brand/Tg | Reliability, compliance |
Copper weight/thickness | Performance, heat, current |
Solder mask type | Fine pitch, AOI visibility |
Surface finish type | Assembly, shelf life |
What’s the real story? The more you ask, the better your business outcomes.
We’ve covered the answer to “what is pcb board made of” from every angle. Your board is more than just glass and copper—it’s an engineered stack of specialty materials, each one affecting your product’s cost, compliance, and long-term reliability. Ready for the good part? Partner with suppliers who can explain and document every layer, so you always get exactly what you need.
Q1: What is PCB board made of?
A PCB board is made of a substrate (FR4, polyimide, etc.), copper foil, prepreg/laminate, solder mask, silkscreen, and a surface finish such as HASL or ENIG.
Q2: How does the substrate material impact performance?
The substrate determines insulation, rigidity, heat resistance, and overall reliability. High-Tg materials handle higher temps, while polyimide offers flexibility.
Q3: What role does copper thickness play?
Copper thickness controls how much current the board can carry and its ability to dissipate heat. Thicker copper is better for power and high-temp uses.
Q4: Why are surface finishes important?
Surface finishes protect copper from oxidation and ensure reliable soldering. Each finish has pros and cons for cost, assembly, and shelf life.
Q5: What environmental regulations apply to PCB materials?
Most markets require RoHS, REACH, and/or halogen-free compliance to limit hazardous substances and
