A Copper Core PCB is a printed circuit board that incorporates a thick copper plate—usually between 0.5 mm and 3.2 mm—as its central structural layer. Unlike a traditional PCB where the substrate is epoxy-glass (FR-4) or a ceramic-filled resin, a Copper Core PCB replaces the dielectric center with a solid metal core made of copper. This copper sheet acts as:
A heat spreader, dramatically increasing thermal conductivity
A mechanical stabilizer, increasing rigidity and dimensional stability
An electrical reference plane, when bonded appropriately
A structural reinforcement against warpage and vibration
In a standard construction, a Copper Core PCB includes:
Copper core (solid copper plate)
Dielectric bonding layer (thermally conductive prepregs or adhesive films)
Outer copper layers (etched to form circuits)
Because copper has an extremely high thermal conductivity (around 400 W/m·K), the Copper Core PCB can pull heat away from high-power devices 40–50 times faster than conventional FR-4 boards, where thermal conductivity is typically only 0.3–0.5 W/m·K.
From an engineering standpoint, a Copper Core PCB is essentially a hybrid between a PCB and a heat sink, designed to create direct thermal pathways from components to the copper substrate and, from there, throughout the system.
The primary purpose of a Copper Core PCB is to provide a high-speed heat conduction channel. When components such as MOSFETs, IGBTs, LEDs, voltage regulators, or RF amplifiers generate heat at their junction, thermal dissipation must occur in the following stages:
Junction → Package Case
Package Case → PCB Dielectric Layer
Dielectric Layer → Copper Core
Copper Core → System Heat Sink or Ambient Environment
The copper core dramatically improves step 3, which is usually the bottleneck in thermal pathways. A typical FR-4 dielectric dissipates heat at only 0.3–0.5 W/m·K, while thermally conductive materials in Copper Core PCB structures can reach 2–8 W/m·K, and once heat reaches the copper platform (approx. 400 W/m·K), it spreads laterally extremely fast.
From my engineering perspective, the Copper Core PCB is not merely a thermal add-on; it fundamentally changes the thermal physics of the PCB, distributing heat uniformly instead of allowing localized overheating. This significantly reduces thermal gradients, which are often responsible for:
Mechanical stress
Premature component failures
Solder joint cracking
Warpage
Variation in electrical parameters due to temperature
This makes Copper Core PCBs invaluable for applications that demand strict thermal uniformity.

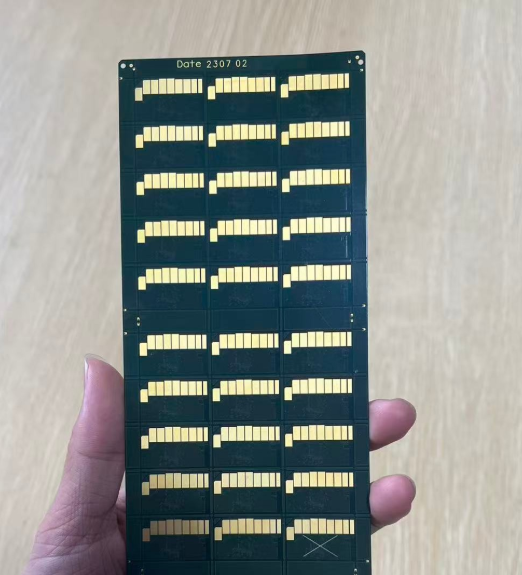

Copper Core PCB
One of the most important realities in using a Copper Core PCB is that it is significantly more expensive than traditional FR-4 or aluminum-based MCPCBs. Several cost drivers contribute to this difference:
Copper is far more expensive than aluminum or glass-epoxy materials.
A thick copper core substrate may account for 40–60% of the total PCB material cost.
Bonding copper cores requires:
High-temperature lamination
Specialized prepregs with enhanced thermal performance
Precision control to prevent void formation
This increases both equipment and processing costs.
Copper is harder and denser than FR-4.
This means:
Drill bits wear out faster
Cutting speeds must be reduced
CNC time increases significantly
These added machining requirements raise the per-panel processing cost.
To ensure perfect bonding and reliable solderability, copper cores often require:
Additional surface treatments
Deburring
Planarity optimization
Because copper expands differently than FR-4, lamination defects such as:
Delamination
Resin cracks
Dielectric voids
Bondline issues
are more likely to occur.
This lowers yield and increases cost.
Despite the higher manufacturing cost, a Copper Core PCB provides measurable improvements across multiple performance categories:
The biggest advantage is dramatically improved thermal spreading, which:
Keeps component junction temperatures lower
Reduces thermal cycling fatigue
Extends overall device lifespan
The copper core increases stiffness and decreases warpage, especially in:
Large panel sizes
High-temperature applications
Automotive and aerospace environments
Copper’s stability can:
Provide a low-impedance ground reference
Improve EMI control
Enhance signal integrity through consistent dielectric thickness
Reduced hotspot formation keeps solder joints and components operating within safe temperature limits. This improves reliability in power-heavy designs such as:
LED modules
Power converters
Motor drivers
RF transmitters
Engineering a Copper Core PCB requires more than simply replacing the dielectric substrate with a copper block. The presence of a solid metal core fundamentally changes the thermal pathways, electrical reference planes, mechanical stiffness, drilling constraints, and stackup possibilities. This chapter explains the crucial engineering considerations that determine whether a Copper Core PCB can achieve optimal performance without introducing unintended challenges.
In a traditional PCB, the material stack is largely symmetrical for the purpose of minimizing warpage. For a Copper Core PCB, however, the core layer is significantly thicker and heavier than all other layers combined, which means stackup design must be:
Mechanically balanced
Thermally optimized
Electrically consistent
Manufacturable with stable lamination pressure
A typical Copper Core PCB stackup contains:
Outer copper foils (17–105 μm)
High thermal-conductivity dielectric or prepreg
Copper core (0.5–3.2 mm)
In many cases, the design must be single-sided or semi-double-sided due to the difficulty of plating through an extremely thick metal core.
Unlike standard FR-4 boards, Copper Core PCB stackups frequently cannot be symmetrical, because:
The core layer dominates the mechanical properties
The top and bottom dielectric layers often differ in thickness
Only one side may hold the active circuitry
The thermal path is optimized for a specific direction, and therefore stack symmetry becomes less critical than thermal conduction efficiency.
However, engineers must still consider:
Bow and twist tolerance
Thermal expansion mismatch
Mounting stress distribution
The design must be structurally stable even when symmetry is not achievable.
The dielectric layer between the copper core and the outer circuitry is the thermal bottleneck in almost all Copper Core PCB designs. Even when using thermally conductive materials, the dielectric is typically:
50–200 μm thick
2–8 W/m·K thermal conductivity
If the layer is too thick, thermal performance suffers.
If it is too thin, insulation breakdown or dielectric cracking may occur.
Thus, the dielectric thickness must be chosen based on:
Electrical isolation requirements
Voltage safety requirements
Thermal conduction target
Dielectric material properties
Mechanical flexibility tolerance
In my experience, most design teams underestimate the significance of dielectric selection. A Copper Core PCB with a poor dielectric choice can:
Fail to reach expected thermal performance
Develop cracks under thermal cycling
Become electrically unreliable at high operating voltages
A thin, high-quality dielectric is often the most important—and the most overlooked—factor.
Copper is extremely dense and abrasive to drill bits.
This creates multiple engineering challenges:
CNC tools wear rapidly
Drilling speed must be reduced
Hole diameter tolerance becomes harder to maintain
Excessive heat during drilling may cause bit breakage
For these reasons, designers are encouraged to:
Minimize via count
Use mechanically feasible hole diameters
Avoid microvia structures that require laser drilling into copper
A full PTH that penetrates a solid Copper Core PCB is extremely difficult. Most fabricators avoid drilling through the metal core entirely.
Instead, alternative structures are used:
Blind vias in dielectric layer
Backdrilled vias stopping before the core
Embedded copper coins
Thermal vias into the dielectric only
Designers must collaborate with manufacturers early to confirm via feasibility.
Thermal engineering is the central reason why designers adopt a Copper Core PCB instead of a standard FR-4 or aluminum-based MCPCB. Because heat directly affects component lifespan, signal stability, and long-term reliability, understanding the thermal physics behind Copper Core PCB operation is essential for anyone designing high-power electronics.
This chapter explains how heat travels inside a Copper Core PCB, why copper outperforms all other PCB materials, and how engineers can optimize thermal flow using proper layout, material selection, and structural enhancements.
The primary mechanism of heat transfer in a Copper Core PCB is solid-state thermal conduction.
Heat moves from the hot component to the copper core through:
Component thermal pad
Solder joint
Dielectric layer
Copper core
System heat sink or chassis
Each layer contributes thermal resistance (Rθ), and the copper core’s extremely low thermal resistance provides a superior heat spreading effect.
One unique advantage of a Copper Core PCB is its exceptional in-plane heat spreading capability.
Copper’s thermal conductivity (approx. 400 W/m·K) allows heat to spread quickly across the entire core, reducing hotspot formation. This lateral spreading is crucial for:
LEDs where uniform brightness and color stability depend on even temperature
MOSFETs and power ICs where thermal gradients affect switching performance
Automotive modules that operate under fluctuating temperatures
High-power RF amplifiers that require stable junction temperatures
Vertical conduction is determined by the thermal resistance of the dielectric.
Even with a copper core, the dielectric layer can significantly impede thermal flow if:
It is too thick
It has low thermal conductivity
It contains voids or delamination defects
This is why dielectric material selection is just as critical as the copper core itself.
Because operating temperatures directly affect reliability, a complete thermal simulation is essential during the design phase. Engineers typically use:
Finite Element Analysis (FEA)
Computational Fluid Dynamics (CFD)
Electro-thermal co-simulation tools
Simulation helps predict:
Junction temperature rises
Hotspot distribution
Thermal cycling fatigue points
Influence of copper thickness on spreading resistance
Effects of via arrangements
Not every design requires full FEA.
For early-stage engineering, simplified models based on:
Fourier’s Law
Thermal resistance stacking
Heat spreading equations
Material property estimations
can give a quick reliability baseline.
However, once high power density is involved (LED COB, power modules, RF PA boards), full thermal simulation is strongly recommended.
| Parameter | Copper Core PCB | Aluminum Core PCB | Standard FR-4 PCB |
|---|---|---|---|
| Thermal Conductivity | ~400 W/m·K (very high) | ~200 W/m·K (high) | 0.3–0.4 W/m·K (very low) |
| Mechanical Strength | Very high rigidity | High rigidity | Moderate |
| Heat Spreading Ability | Excellent, uniform | Good, but less uniform | Poor |
| Cost | Highest | Medium | Low |
| Machining Difficulty | High (CNC required) | Medium | Low |
| Suitable Applications | High-power modules, EV, LEDs | LED lighting, power boards | General electronics |
Copper Core PCB technology stands at the intersection of thermal science, materials engineering, and high-reliability electronics design. Its superior thermal conductivity, mechanical strength, and stable dimensional properties make it a transformative solution for applications where conventional PCB materials would fail. While the cost of copper-core solutions is higher, the improvement in reliability, performance consistency, and product lifetime often outweighs the investment—especially in power-dense, thermally demanding, or safety-critical electronics.
From LED modules to EV power management, from industrial automation to renewable energy systems, copper core structures unlock new engineering possibilities. When combined with disciplined stackup design, precise lamination processes, and expert manufacturing support, copper cores enable electronics to operate cooler, safer, and more efficiently.
The evolution of modern electronics continues to push the boundaries of thermal density, reliability, and system integration. In this environment, Copper Core PCB technology has emerged not merely as a material choice but as a strategic engineering solution. Its high thermal conductivity, structural rigidity, and predictable dimensional behavior under heat enable designers to build systems that operate safely within their thermal envelopes, even as power densities increase year over year.
What becomes evident through real-world engineering practice is that copper-core structures are less about solving a single thermal problem and more about establishing an ecosystem of stability: stable junction temperatures, stable mechanical alignment, stable electrical characteristics, and stable long-term reliability. This multi-dimensional stability is the foundation on which high-performance electronics—especially those in automotive, renewable energy, industrial automation, and LED power modules—are built.
From the designer’s perspective, adopting a copper-core solution requires a shift in mindset. Instead of treating thermal dissipation as an after-the-fact problem, it becomes a primary design parameter that influences stackup choices, component placement, soldering profiles, and via strategies. This shift leads to more intentional engineering, and in turn, more predictable outcomes. In my experience, many failures attributed to components or solder processes are fundamentally rooted in unresolved thermal gradients that copper cores could have prevented.
However, this technology is not without trade-offs. Higher material cost, more demanding machining requirements, and tighter lamination controls require careful justification. Yet when considering the extended product lifespan, reduced service failures, and greater operating margins, the return on investment becomes obvious—particularly for mission-critical or thermally stressed electronics.
Another dimension that cannot be overstated is manufacturing competence. Copper-core fabrication is not merely a scaled-up version of metal-core PCB manufacturing; it is a precision discipline requiring specialized lamination knowledge, CNC routing control, surface finishing experience, and thermal-mechanical reliability testing. This is where professional manufacturers such as JM PCB provide genuine value. Their process maturity, controlled bonding techniques, and stackup engineering expertise significantly reduce the risks that often accompany copper-core development.
In the broader technological landscape, copper-core designs will increasingly align with trends such as compact power architectures, wide-bandgap semiconductors (GaN, SiC), energy-efficient LED systems, and next-generation inverters. These fields inherently demand superior thermal solutions—solutions that conventional FR-4 or aluminum substrates cannot deliver at scale.
In conclusion, the role of copper cores extends far beyond thermal performance. They elevate the entire electronic system’s robustness, enabling designers to pursue performance targets with confidence rather than compromise. As power electronics continue to advance and thermal loads grow more challenging, adopting Copper Core PCB technology represents not only a practical engineering choice but also a strategic investment in long-term reliability, safety, and product excellence.
Absolutely. The high thermal conductivity of copper enables extremely efficient heat spreading, making it ideal for compact power modules, LED arrays, and electric-vehicle controllers.
Copper cores offer significantly higher thermal conductivity and better mechanical rigidity than aluminum PCBs. They also allow finer circuit features and more complex multilayer stackups.
Yes, primarily due to higher material cost, machining complexity, and special lamination processes. However, improved thermal reliability often reduces warranty costs and enhances product lifespan.
Yes, but designers must carefully select low-loss dielectrics, as the copper core itself does not determine RF performance. Proper stackup tuning is essential.
Key challenges include controlling warpage, balancing the stackup, tuning solder-reflow profiles, and ensuring strong dielectric-to-copper bonding during lamination.
