Copper Wire Shedding

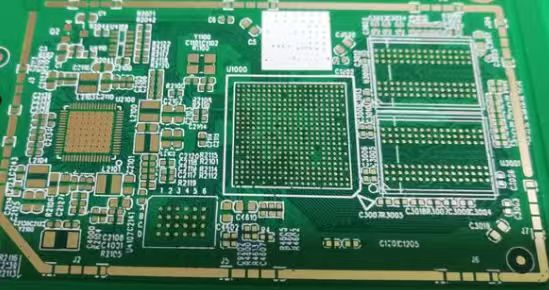

Copper Wire Shedding refers to the phenomenon in which copper conductors or plated traces partially or completely detach from the underlying dielectric substrate or internal copper layer. This detachment may occur during processing, soldering, or, more critically, after prolonged use in the field.
At its core, Copper Wire Shedding is an adhesion failure between the copper and the dielectric substrate, often caused by insufficient bonding strength, contamination, excessive mechanical stress, or poor process control. The detachment can manifest as copper traces peeling, microcracks forming along conductor edges, or even microscopic separation within via barrels or plated through-holes.
When adhesion fails, the detached copper can either float freely—posing a risk of short circuits—or remain loosely attached, creating open connections and intermittent electrical failures. These defects often evade early inspection but surface during reliability testing or product operation.
In multilayer PCB constructions, Copper Wire Shedding can also occur within internal layers due to improper lamination pressure or contamination of bonding surfaces. This makes detection and root cause identification especially difficult, as the failure may only become apparent after thermal cycling, vibration, or flexural stress.
Although the term Copper Wire Shedding has become more widely recognized in recent years, its underlying failure mechanisms have existed since the earliest days of PCB fabrication. Early single-layer boards, with their relatively thick copper foils and simple structures, were less prone to this issue. However, as technology advanced toward high-density interconnect (HDI) designs and microvia structures, the challenges increased dramatically.
The shift to thinner copper foils—such as 12 μm or even 9 μm thicknesses—reduced material stability during mechanical and thermal processing. Meanwhile, the adoption of new substrate materials (such as halogen-free FR-4, polyimide, or modified epoxy resins) introduced new adhesion variables.
Industry experts began systematically analyzing Copper Wire Shedding as a reliability threat during the early 2000s, particularly after incidents in automotive control units and high-frequency telecommunication modules. In both cases, boards exhibited unexpected failures within a year of field deployment, and microscopic analysis revealed widespread copper delamination along the conductor base.
Today, awareness of this failure mode has expanded beyond failure analysis laboratories. Many PCB design houses and OEMs now actively incorporate adhesion evaluation during both prototype qualification and supplier audits. The issue is no longer viewed as an occasional manufacturing defect—it is a critical reliability factor that must be addressed proactively.
The early detection of Copper Wire Shedding remains a significant challenge because the defect often develops beneath the surface. However, certain observable symptoms can signal potential issues:
Peeling or lifting of copper traces after soldering or reflow operations.
Open circuits or intermittent connections during in-circuit testing (ICT) or functional tests.
Visual warping or blistering on the copper surface.
Delamination detected during cross-sectional analysis.
Abnormal impedance behavior due to partial conductor separation.
Advanced nondestructive techniques such as Scanning Acoustic Microscopy (SAM) and X-ray Computed Tomography (CT) can identify subsurface delamination. However, these methods are often costly and time-consuming. Consequently, cross-section analysis remains the industry’s gold standard for confirming Copper Wire Shedding, providing direct visual evidence of separation at the copper-substrate interface.
Copper Wire Shedding can occur at various stages of PCB production, each with its own unique risk factors:
During Copper Plating:
Poor surface activation or contamination on the base copper can lead to weak interlayer adhesion, making the plated copper prone to detachment during subsequent processing.
During Lamination:
In multilayer PCBs, insufficient lamination temperature, pressure, or curing time can prevent resin flow from fully encapsulating copper features, resulting in internal delamination.
During Drilling and Desmear:
Mechanical stress during drilling, especially for microvias, can initiate microcracks along copper boundaries that later propagate into full wire shedding under thermal cycling.
During Assembly and Reflow:
High soldering temperatures or improper pre-bake can exacerbate existing weaknesses, especially if moisture has penetrated the substrate.
During Field Operation:
Thermal expansion mismatches and vibration fatigue can eventually lead to delayed Copper Wire Shedding even if the PCB passed initial inspection.
Not all Copper Wire Shedding occurs uniformly across a PCB. Studies have shown that this defect tends to concentrate in areas of high thermal stress (e.g., near BGA pads, power components) or regions with sharp copper geometries (e.g., narrow traces, high-density vias).
Furthermore, differential expansion between copper and dielectric layers during heating can intensify the mechanical load at their interface. As the copper expands more than the resin, cyclic fatigue progressively weakens the bond, ultimately triggering localized shedding.
Thus, one of the key insights from modern reliability engineering is that Copper Wire Shedding is both a process and design-dependent phenomenon. Reducing its risk requires a holistic view—balancing thermal, mechanical, and chemical stability throughout the board’s lifecycle.
Having defined the nature, history, and manifestation of Copper Wire Shedding, it becomes essential to explore its root causes at the material and process levels. The interplay between copper foil characteristics, substrate composition, adhesion promoters, and plating chemistry forms the foundation of the problem.
The next section will analyze how material selection, surface roughness, and process chemistry contribute to the initiation and propagation of Copper Wire Shedding. By understanding these interactions, manufacturers can better design preventive strategies that enhance long-term reliability.
The science of adhesion between copper and dielectric materials lies at the very heart of understanding Copper Wire Shedding. In printed circuit board (PCB) fabrication, the mechanical and chemical bond between copper foil and the base laminate dictates how well the structure can endure manufacturing stress, soldering heat, and operational fatigue. When this bond fails, copper conductors separate, leading to the phenomenon known as Copper Wire Shedding.
This section explores the material-level interactions that influence adhesion strength, focusing on copper foil types, surface roughness, oxide treatment, resin systems, and interfacial chemistry. By dissecting these parameters, engineers can gain a clearer picture of why shedding occurs and how it can be systematically prevented.
Copper foils are not all created equal. The two main types used in PCB production—Electrolytic Copper Foil (ED) and Rolled-Annealed Copper Foil (RA)—differ significantly in their manufacturing process, crystal structure, and physical behavior.
Electrolytic Copper Foil is produced through electrodeposition on a rotating drum. The process yields a columnar grain structure, with a rough “matte side” that enhances adhesion to dielectric layers. However, due to its higher internal stress and coarse grain boundaries, ED foil can be more prone to mechanical fatigue and delamination under flexural or thermal strain.
Rolled-Annealed Copper Foil, by contrast, is created by mechanically rolling and annealing copper ingots. This process produces a dense, uniform grain structure and superior mechanical ductility. RA foil provides better flexibility and resistance to stress cracking, making it particularly useful for flexible PCBs and applications where repeated bending occurs.
In the context of Copper Wire Shedding, the choice between these foils is critical. ED foil may exhibit better adhesion initially due to its surface roughness, but under repeated stress, microcracks can propagate along its grain boundaries. RA foil, though smoother, maintains structural integrity under long-term strain, reducing the likelihood of copper detachment.
The surface morphology of copper plays a pivotal role in adhesion. Traditionally, roughened copper surfaces were preferred because their micropeaks and valleys allowed resin to “mechanically lock” into the surface. However, as PCBs evolve toward high-frequency and high-speed applications, excessive roughness increases signal loss and electromagnetic interference (EMI).
Modern engineers thus face a trade-off: maintaining adequate adhesion strength while minimizing surface roughness. The trend toward low-profile and reverse-treated foils has altered the adhesion dynamics, making chemical bonding and interfacial treatments more important than mechanical anchoring.
When roughness is too low, resin cannot adequately wet or anchor the copper surface, leading to weak interfacial bonding. Conversely, excessive roughness creates stress concentration points that act as crack initiation sites. Both extremes increase the risk of Copper Wire Shedding.
Therefore, optimizing the surface texture—typically with average roughness (Ra) values between 1.5 to 2.5 μm—is essential to balance adhesion and electrical performance.
To enhance copper-to-resin adhesion, manufacturers commonly apply oxide or oxide-replacement treatments to copper foil before lamination. The classic black and brown oxide processes form a micro-rough, chemically oxidized surface layer that increases mechanical interlocking. However, these processes can create weak spots if the oxide layer becomes too thick or uneven.
Modern oxide-replacement systems use chemical adhesion promoters—such as organo-metallic bonding agents or silane coupling compounds—that create a covalent bridge between the copper surface and the resin matrix. These chemical bonds are far more resistant to delamination during thermal cycling and moisture exposure.
When oxide treatment is improperly controlled—either through over-oxidation, contamination, or poor rinsing—the resulting interface becomes brittle or contaminated, which can lead to Copper Wire Shedding during lamination or solder reflow.
The substrate material in a PCB provides the foundation for copper adhesion. Traditional FR-4 epoxy glass laminates offer a balance of cost, strength, and thermal stability. However, modern high-performance boards often use polyimide, BT resin, or PTFE-based materials to meet high-frequency or high-temperature demands.
Each resin system exhibits different coefficients of thermal expansion (CTE), moisture absorption characteristics, and chemical compatibility with copper. When the CTE mismatch between copper and resin is large, thermal stress accumulates at the interface. Repeated thermal cycling—especially between 25°C and 260°C during soldering—can gradually cause the copper layer to separate, manifesting as Copper Wire Shedding.
Additionally, incomplete resin curing or contamination from processing chemicals (like desmear residues or mold release agents) can further weaken adhesion. For this reason, process control during lamination and resin flow is essential to prevent entrapped air, voids, or weak bonding zones.
Beyond oxide treatments, adhesion promoters are increasingly used to chemically enhance copper-to-dielectric bonding. Silane-based coupling agents, for instance, form a molecular bridge through hydrolysis and condensation reactions. This molecular linkage ties copper atoms to resin molecules via oxygen or nitrogen bonds.
These chemical bridges are particularly effective in improving resistance to humidity, heat, and mechanical stress—conditions under which Copper Wire Shedding would otherwise initiate. The correct concentration, pH, and drying parameters of adhesion promoters must be carefully maintained. Even small deviations can create a weak boundary layer prone to delamination.
As PCBs endure operational stress, copper and dielectric materials expand and contract at different rates. Over thousands of thermal cycles, these expansion mismatches can fatigue the interface.
Studies show that microcracks first appear at the interface corners or along grain boundaries. These microscopic defects act as precursors to Copper Wire Shedding, especially under vibration or flexing conditions. Once initiated, cracks propagate rapidly due to the cyclic strain of power cycling and heat dissipation.
To mitigate this, engineers can select materials with closer CTE matching and employ stress-relief structures, such as teardrops at via intersections or controlled pad geometries. The optimization of plating thickness also helps distribute thermal stress evenly.
Moisture is another silent contributor to Copper Wire Shedding. Dielectric materials that absorb water can expand, creating hydrostatic pressure at the copper interface. During soldering, absorbed moisture rapidly vaporizes, leading to microblistering or delamination known as the “popcorn effect.”
Additionally, contaminants such as residual ionic compounds, fingerprints, or dust particles interfere with adhesion during lamination. Over time, these impurities can corrode the copper interface, weakening its bond and triggering wire shedding.
To combat this, manufacturers must implement strict cleanroom standards and surface cleaning protocols before lamination. Techniques such as plasma cleaning or chemical desmear ensure that the copper surface is active and free of contaminants.
Effective material selection for mitigating Copper Wire Shedding requires balancing mechanical, chemical, and thermal properties. For instance, choosing an RA foil may enhance ductility but increase cost, while using a specific oxide replacement may improve adhesion but reduce process tolerance.
Therefore, engineers must weigh these trade-offs based on end-use requirements. High-density boards for aerospace or automotive systems demand superior adhesion and fatigue resistance, while consumer electronics may prioritize cost efficiency.
One example of a manufacturer that successfully balances these parameters is JM PCB, whose materials engineering team applies advanced adhesion simulation and interfacial characterization methods to optimize copper-substrate bonding. Their process ensures that the copper layer retains structural stability under repeated stress conditions, significantly reducing the risk of Copper Wire Shedding in high-reliability applications.
While material properties form the foundation of adhesion reliability, they do not act in isolation. The next dimension to understanding Copper Wire Shedding involves the mechanical and chemical triggers encountered during the fabrication process—such as etching, plating, and drilling. Each of these stages introduces potential stressors that can either reinforce or compromise copper integrity.
The manufacturing process exerts a profound influence on Copper Wire Shedding. Inadequate control of processes like copper plating, desmear, or lamination can create hidden weaknesses that manifest later as copper detachment. For instance, excessive micro-etching may reduce copper thickness or roughness to a level where the adhesion to the dielectric layer becomes insufficient. Similarly, improper lamination temperature profiles can result in incomplete resin curing or excessive thermal stress.
Plating bath maintenance and control of chemical parameters — such as pH, copper ion concentration, and additive ratios — are critical. Overaged baths or imbalanced formulations often produce deposits with internal stress or poor grain structure. Regular Hull cell testing and bath analysis are therefore essential for maintaining optimal copper deposition quality.
Prevention of Copper Wire Shedding begins long before the physical manufacturing stage — it starts in the design room. Poorly designed trace geometries, such as excessively narrow traces adjacent to heavy copper areas, may cause uneven plating or etching. This imbalance leads to mechanical stress concentration along certain regions, promoting eventual wire detachment.
Design engineers should follow uniform copper distribution principles to minimize stress gradients. Copper balancing, adding dummy pads, or equalizing copper density across layers helps reduce differential shrinkage. For high-current designs, rounded corners and controlled trace widths help avoid sharp stress points.
Thermal management must also be addressed. Uneven heat dissipation can exacerbate local expansion and contraction, weakening copper adhesion over time. Incorporating thermal vias, heatsinks, or copper pours around hot spots helps maintain even temperature gradients, extending PCB lifespan and preventing Copper Wire Shedding.
Even the most carefully manufactured PCB may suffer Copper Wire Shedding if exposed to harsh environmental conditions. Factors like high humidity, corrosive atmospheres, vibration, and prolonged thermal cycling accelerate material fatigue and delamination. Moisture ingress, in particular, can compromise the resin–copper interface, creating voids and microcracks that eventually lead to copper lift-off.
Operational stresses — such as repeated on/off power cycling or mechanical bending in flexible circuits — also exacerbate adhesion loss. These factors cause microscopic movements between the copper foil and dielectric substrate, gradually eroding the interfacial bond.
Protective coatings, such as conformal coatings or encapsulants, can mitigate these environmental effects. For high-reliability products operating in aerospace or automotive environments, designers should consider reinforced base materials, low-CTE resins, and controlled moisture absorption laminates. Ensuring environmental compatibility is not optional — it is an essential part of defending against Copper Wire Shedding.
To systematically prevent Copper Wire Shedding, the industry must embrace a standardized approach to quality control and inspection. While IPC and ASTM provide certain adhesion testing guidelines, more detailed and copper-specific reliability criteria are required. Companies are now establishing internal standards that go beyond basic peel strength requirements, incorporating dynamic thermal-mechanical testing and cross-sectional validation.
A robust quality assurance system should include traceability at every stage of PCB fabrication. From copper foil batch records to plating bath analytics, every variable that affects copper adhesion should be logged and analyzed. Statistical Process Control (SPC) and Six Sigma methodologies can then be used to identify trends, detect anomalies, and implement corrective actions before quality drifts become catastrophic.
In addition to testing, supplier collaboration is key. Copper foil manufacturers, laminate producers, and PCB fabricators must share data and jointly validate material compatibility. This cooperative model ensures that adhesion performance remains consistent across diverse applications, from consumer electronics to aerospace systems.
Ultimately, Copper Wire Shedding prevention requires a culture of reliability — one that extends beyond technical compliance into continuous improvement and innovation.
Copper Wire Shedding represents a subtle yet potentially devastating failure mechanism in printed circuit boards. It erodes mechanical integrity, disrupts electrical performance, and shortens product lifespan. However, by understanding its causes — from poor material selection to uncontrolled processing variables — manufacturers can take decisive steps toward prevention.
The key lies in holistic control: high-quality copper foils, optimized plating and lamination, precise environmental management, and advanced testing technologies. When these factors work in harmony, the risk of copper detachment diminishes dramatically.
Ultimately, the fight against Copper Wire Shedding is more than a technical challenge — it is a testament to the PCB industry’s pursuit of perfection, innovation, and trust.
1. What is the main difference between chemical adhesion and mechanical adhesion in preventing Copper Wire Shedding?
Chemical adhesion refers to molecular bonding at the copper–resin interface, often enhanced by surface treatments such as oxide or silane coupling agents. Mechanical adhesion, on the other hand, relies on the interlocking of roughened copper surfaces into the resin structure. Both mechanisms work synergistically — chemical bonds provide strength at the molecular level, while mechanical interlocks add resistance to peeling and shear stresses that lead to Copper Wire Shedding.
2. How can PCB manufacturers test for potential Copper Wire Shedding before shipment?
Manufacturers can perform peel strength tests, cross-sectional analysis, and thermal cycling reliability tests to identify weak adhesion zones. Non-destructive X-ray and ultrasonic scanning are also increasingly used for detecting delamination or voids.
3. Does high-temperature exposure accelerate Copper Wire Shedding?
Yes. Repeated thermal cycling causes differential expansion between copper and resin, weakening adhesion over time. Using high-Tg or low-CTE materials can mitigate this effect and enhance long-term reliability.
4. What materials are best for preventing Copper Wire Shedding in high-performance PCBs?
High-adhesion electrolytic copper foils with treated oxide surfaces, combined with polyimide or high-Tg FR-4 laminates, provide strong interfacial bonding and reduce the risk of copper detachment during manufacturing and service.
5. How does design layout affect Copper Wire Shedding risk?
Uneven copper distribution, sharp trace corners, or poor thermal management can create localized stress and increase adhesion failure risk. Balanced copper placement and rounded trace edges improve mechanical resilience.
