In the realm of advanced electronics, where performance, miniaturization, and reliability converge, one material innovation has quietly transformed the way circuit boards endure extreme conditions: the High Tg PCB. Unlike standard laminates, these boards are designed to withstand higher thermal stress, making them indispensable in high-temperature environments such as automotive electronics, aerospace systems, and industrial automation.
As electronic devices continue to demand more power while shrinking in size, the thermal challenges they face become increasingly severe. Traditional PCBs can falter under such conditions, leading to failures that may compromise safety or functionality. High Tg PCBs provide a robust solution to these challenges, offering elevated glass transition temperatures, enhanced stability, and superior mechanical properties.
This article explores the technical depth of High Tg PCBs, their advantages, applications, and challenges, while also considering future trends and best practices for engineers and manufacturers. Along the way, I will share my own reflections as someone who has observed the gradual but profound shift toward materials that can endure conditions once considered insurmountable.
The term “Tg” refers to the glass transition temperature, the point at which a polymer substrate changes from a rigid, glass-like state to a softer, rubber-like state. For most standard FR4 PCBs, this temperature lies in the range of 130°C to 140°C. However, in many high-performance applications, these temperatures are insufficient.
A High Tg PCB is specifically engineered with materials whose Tg typically exceeds 170°C. By raising this threshold, the PCB gains superior resistance to thermal stress, ensuring that its structural integrity and electrical performance are maintained even under prolonged heating cycles.
In practical terms, this means that High Tg PCBs are less likely to warp, delaminate, or suffer from electrical leakage when exposed to elevated temperatures. For industries like telecommunications, automotive electronics, and aerospace, where heat is a constant companion, this property is invaluable.
To fully appreciate the performance of a High Tg PCB, it is essential to examine the material properties that distinguish it from conventional boards.
Glass Transition Temperature (Tg): Typically >170°C, compared to ~135°C for standard FR4.
Decomposition Temperature (Td): The point at which the material chemically breaks down, usually >300°C.
Coefficient of Thermal Expansion (CTE): A lower CTE ensures that the PCB expands less under heat, minimizing stress on solder joints and components.
Thermal Conductivity: Improved compared to regular laminates, allowing more efficient heat dissipation.
One of the hidden benefits of a High Tg PCB is the improved dimensional stability. This means that even when subject to multiple thermal cycles, such as during lead-free soldering processes, the board maintains its integrity without warping or cracking.
As I see it, these material improvements not only enhance performance but also empower designers to push the boundaries of what’s possible in compact, high-power circuits. Without such advancements, many of the technologies we take for granted—like fast-charging EV electronics or 5G base stations—would struggle to function reliably.

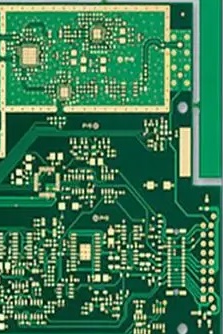

High Tg PCB
The advantages of a High Tg PCB extend beyond its basic ability to withstand elevated temperatures. Modern electronics are not only more powerful but also more compact, meaning that heat dissipation has become one of the greatest engineering challenges of our time.
Thermal Resistance:
The most obvious advantage of a High Tg PCB is its resilience to heat. Devices such as LED lighting modules, automotive engine control units, and high-speed processors operate in environments where internal temperatures often exceed 100°C. A conventional PCB would suffer from rapid degradation, but a High Tg PCB continues to function reliably.
Mechanical Strength:
Higher Tg materials have improved rigidity, reducing the risk of warpage or deformation. This is particularly critical for multilayer PCBs where dimensional stability is crucial to maintaining signal integrity and preventing internal delamination.
Improved Reliability in Soldering:
Lead-free soldering processes often require higher reflow temperatures. Standard boards may not survive these cycles, but a High Tg PCB is built to endure repeated exposure without compromising electrical connections.
Enhanced Electrical Performance:
By resisting thermal degradation, these boards maintain stable dielectric properties, ensuring minimal signal loss and consistent impedance control.
From my perspective, the most transformative advantage is the freedom it grants designers. By mitigating thermal risks, engineers can push components closer together, increase layer counts, and design systems that are both denser and more powerful. This, in turn, fuels progress in industries ranging from 5G to renewable energy.
When evaluating performance, it’s not enough to consider temperature alone. Real-world applications subject PCBs to a combination of stress factors: thermal cycles, vibration, humidity, and even chemical exposure.
Automotive Electronics: Inside an engine compartment, temperatures can spike dramatically, while vibration adds an additional layer of stress. A High Tg PCB provides stability against both heat and mechanical fatigue.
Aerospace Systems: In satellites or avionics, materials must tolerate not only heat but also rapid thermal fluctuations. The low CTE of High Tg PCBs reduces mechanical stress during these extreme cycles.
Industrial Machinery: High-power motors, inverters, and automation controllers generate consistent thermal loads. Here, the enhanced dimensional stability of High Tg laminates ensures long-term reliability.
An interesting personal observation: I’ve seen how companies that initially dismissed High Tg PCBs as “overengineering” eventually adopted them after experiencing failures in harsh environments. The initial cost seemed high, but the savings from reduced maintenance, fewer recalls, and greater customer trust far outweighed the expense.
The range of industries that benefit from High Tg PCB technology continues to expand:
Telecommunications: Base stations, routers, and 5G antennas demand stable signal integrity. A High Tg PCB minimizes dielectric loss at high frequencies.
Automotive: Electric vehicle battery management systems, ADAS (Advanced Driver Assistance Systems), and power converters all rely on thermal stability.
Medical Devices: Imaging equipment, surgical lasers, and diagnostic machines cannot afford thermal drift that might affect accuracy.
Consumer Electronics: High-performance gaming consoles and laptops push thermal boundaries; High Tg PCBs help maintain performance under load.
Defense and Aerospace: Mission-critical applications require long-term stability in extreme conditions, making High Tg materials non-negotiable.
From my point of view, the automotive and renewable energy sectors are the biggest growth drivers for High Tg PCB adoption today. Electric vehicles, in particular, represent a perfect storm of high current, compact packaging, and elevated ambient temperatures—all factors that make conventional FR4 inadequate.
To fully understand the value proposition, let’s compare High Tg PCBs with their standard FR4 counterparts:
| Feature | Standard FR4 PCB | High Tg PCB |
|---|---|---|
| Tg Value | 130–140°C | 170–180°C+ |
| Thermal Stability | Moderate | Excellent |
| Soldering Endurance | Limited | High (lead-free compatible) |
| Mechanical Strength | Standard | Superior |
| Cost | Lower | Higher |
While High Tg PCBs are undeniably more expensive, their advantages justify the investment in high-reliability applications. For projects where failure is not an option—such as medical devices or aerospace—the cost differential becomes negligible compared to the risk of system malfunction.
Personally, I believe the industry’s gradual shift toward High Tg materials mirrors what happened with the adoption of lead-free solder. Initially, cost and manufacturing hesitance slowed adoption, but as demand for reliability grew, High Tg boards became less of a luxury and more of a necessity.
Designing with a High Tg PCB requires more than simply substituting materials. Engineers must take into account how these laminates behave electrically, thermally, and mechanically in real-world applications.
Thermal Budget Planning
Since High Tg PCBs are chosen primarily for their ability to handle heat, designers must carefully calculate the thermal loads their circuits will experience. This includes accounting for component placement, power dissipation, and airflow.
Layer Stack-Up
A common misconception is that High Tg materials automatically solve all design issues. In reality, proper stack-up design is still critical. For example, power and ground planes should be positioned to optimize heat spreading and minimize impedance discontinuities.
Component Selection and Placement
High Tg boards enable tighter layouts, but thermal hotspots can still occur if high-current components are clustered together. Thoughtful component placement ensures that heat is evenly distributed across the PCB.
Signal Integrity Concerns
High Tg laminates often exhibit slightly different dielectric constants compared to standard FR4. Designers must ensure impedance-controlled traces are recalculated and verified through simulation.
Mechanical Considerations
For applications exposed to vibration or mechanical stress, board thickness, mounting hole reinforcement, and connector placement must be evaluated to ensure long-term durability.
From my perspective, the biggest mistake I’ve seen engineers make is assuming that a High Tg PCB is a “plug-and-play” solution. In reality, the technology is only as good as the design practices applied to it. When paired with thoughtful thermal and mechanical design, however, the results are exceptional.
While the advantages of High Tg PCBs are clear, manufacturers often face unique challenges when processing these materials.
Drilling Difficulty
High Tg laminates are tougher than standard FR4, which makes drilling more difficult. Drill bits wear faster, and hole-wall quality must be carefully monitored. Manufacturers compensate by using harder drill bits and optimizing spindle speeds.
Lamination Process
These boards require higher lamination temperatures and longer press cycles. Controlling resin flow and preventing voids are critical for maintaining layer adhesion.
Copper Adhesion
Some High Tg materials have slightly different surface chemistries, which can impact copper adhesion during plating. Special surface treatments and plasma cleaning are often applied to ensure robust bonding.
Cost Management
Because processing times are longer and tool wear is greater, costs are naturally higher. Only experienced PCB manufacturers can strike the right balance between process efficiency and quality control.
In my opinion, this is where the choice of manufacturing partner becomes decisive. A skilled manufacturer not only understands the nuances of handling High Tg laminates but also invests in the right equipment to process them consistently. For example, JM PCB has developed optimized lamination and drilling techniques that minimize defects, reduce costs, and maintain repeatability—something smaller shops often struggle with.
Signal integrity is another domain where High Tg PCBs shine.
Controlled Impedance:
Stable dielectric properties ensure that high-frequency signals maintain their shape, reducing jitter and signal loss.
Reduced Crosstalk:
The dimensional stability of High Tg boards keeps trace geometries consistent, minimizing the risk of crosstalk in high-density designs.
Thermal Aging Resistance:
Unlike standard FR4, High Tg laminates resist degradation after repeated heating cycles. This means impedance values remain stable even after long-term operation.
High-Frequency Applications:
As we enter the 5G era, frequencies in the range of 28 GHz and above are increasingly common. High Tg boards are better suited to support these frequencies compared to traditional FR4, which suffers from higher dielectric loss.
Reflecting on this, I believe High Tg PCBs serve as a bridge between mainstream FR4 and ultra-high-performance laminates like PTFE (used in RF applications). They deliver a balance: affordable enough for wide adoption, but with performance that approaches specialty materials in certain scenarios.
Apart from electrical and thermal advantages, mechanical robustness is another key reason High Tg PCBs are chosen.
Warpage Resistance:
High Tg laminates expand less under heat, reducing the risk of board warpage. This is particularly important for fine-pitch BGA and QFN packages where coplanarity must be maintained.
Vibration Tolerance:
In environments like automotive or aerospace, vibration is constant. High Tg boards resist cracking and delamination better than standard FR4.
Multilayer Integrity:
As PCBs scale to 8, 10, or even 20+ layers, interlaminar adhesion becomes critical. High Tg boards provide stronger bonds, ensuring that multilayer stacks remain intact over years of service.
From my own perspective, the mechanical stability of High Tg boards is often underestimated. Engineers tend to focus on thermal thresholds, but in many real-world failures I’ve analyzed, mechanical issues—like warpage-induced solder joint cracks—were the root cause. High Tg PCBs address both sides of the equation.
One of the most common questions engineers and purchasing teams ask is: “Is a High Tg PCB worth the higher cost?”
The answer, in my experience, depends entirely on the application.
Upfront Cost
High Tg laminates are more expensive to procure, and processing them requires additional time and tool wear. This can add 15–25% to the cost compared to standard FR4 boards.
Lifecycle Savings
The real advantage lies in lifecycle economics. A High Tg PCB dramatically reduces the likelihood of field failures, product recalls, and warranty claims. For industries like automotive and aerospace, where a single failure can cost millions, the return on investment is immediate.
Market Positioning
Using High Tg materials often aligns with a company’s strategy of branding itself around reliability and performance. For example, medical device manufacturers frequently emphasize that their products use High Tg boards as part of their quality assurance narrative.
Cost vs. Risk
If the operating environment involves consistent exposure above 100°C, or if reliability is mission-critical, the small incremental cost becomes negligible compared to the potential consequences of a failure.
From my perspective, the real decision is not about whether to use a High Tg PCB, but about where not to use it. For low-cost, disposable consumer devices, standard FR4 is fine. But for anything that requires trust and endurance, the balance always tips toward High Tg materials.
Looking ahead, the role of High Tg PCBs will only grow stronger.
Electric Vehicles (EVs): As EV adoption accelerates, thermal management becomes even more critical. High Tg PCBs will form the backbone of battery management systems, inverters, and charging stations.
5G and Beyond: With frequencies pushing past 28 GHz, dielectric stability will be more important than ever. High Tg boards will bridge the gap between FR4 and ultra-premium RF substrates.
Miniaturization and Integration: Higher circuit density means more heat in smaller packages. High Tg laminates provide the thermal margin necessary to make this possible.
Sustainability: Future research is moving toward environmentally friendly High Tg materials that reduce the carbon footprint while maintaining performance.
As technology evolves, sustainability has become an essential consideration in PCB manufacturing. High Tg PCBs are not only about reliability but also about responsible production.
Lead-Free Compatibility
Since global regulations like RoHS restrict the use of lead in electronics, manufacturers require laminates that withstand higher soldering temperatures. High Tg PCBs inherently support these eco-friendly processes.
Extended Product Lifespan
By reducing premature failures, High Tg PCBs help extend the lifespan of devices, lowering electronic waste over time. This is especially important in industries like consumer electronics, where rapid obsolescence already creates massive e-waste problems.
Recyclability Challenges
While High Tg laminates are robust, they are also more challenging to recycle than traditional FR4. Future material science research must balance high performance with improved recyclability.
No discussion of High Tg PCBs would be complete without highlighting the importance of testing and quality assurance.
Thermal Cycling Tests
Boards are repeatedly exposed to heating and cooling cycles to verify dimensional stability and solder joint integrity.
Electrical Testing
Impedance testing, dielectric breakdown tests, and continuity checks ensure reliable signal transmission.
Mechanical Stress Tests
Flexural strength, vibration testing, and drop tests confirm that the PCB can survive mechanical shocks in real-world use.
Environmental Testing
Humidity, salt spray, and chemical resistance tests validate the durability of High Tg PCBs in harsh operating conditions.
High Tg PCBs represent more than just a material upgrade—they are a strategic enabler for modern electronics. As devices become smaller, faster, and more powerful, the demand for materials that can withstand extreme thermal and mechanical stress continues to grow.
The advantages of High Tg PCBs—thermal stability, mechanical strength, and signal reliability—make them indispensable in industries ranging from automotive to aerospace. Yes, they come at a higher cost, but when measured against the risks of failure, they consistently prove to be the wiser investment.
Looking forward, I believe High Tg PCBs will play a central role in the electrification of transportation, the rollout of 5G and beyond, and the sustainability movement in electronics. By extending device lifespans and reducing failures, they align both with technical performance and environmental responsibility.
Finally, the choice of manufacturer cannot be overstated. With proven expertise and commitment to quality, companies like JM PCB offer not only reliable products but also the assurance that comes with working alongside a true partner in innovation.
1. What is the difference between rolled copper foil and electrolytic copper foil?
Rolled copper foil is produced by mechanically rolling copper into thin sheets, offering better surface quality and mechanical strength. Electrolytic copper foil is deposited via an electrolytic process and is more flexible and cost-effective.
2. How does a High Tg PCB differ from a standard FR4 PCB?
A High Tg PCB has a glass transition temperature typically above 170°C, compared to 130–140°C for standard FR4. This gives it better thermal stability, mechanical strength, and compatibility with lead-free soldering.
3. What industries benefit most from High Tg PCBs?
Automotive, aerospace, telecommunications, renewable energy, and medical devices all rely heavily on High Tg PCBs due to their need for high reliability in harsh conditions.
4. Does using a High Tg PCB always justify the cost?
Not always. For low-cost, disposable electronics, standard FR4 may be sufficient. But for mission-critical or high-temperature applications, the added reliability of a High Tg PCB justifies the higher cost.
5. How should engineers design for High Tg PCBs differently?
Engineers should adjust impedance calculations for slightly different dielectric constants, use thermal simulations to plan heat management, and collaborate closely with manufacturers to ensure stack-up and process compatibility.
