Thermal management has become one of the most pressing challenges in modern electronic design. As devices evolve toward higher speeds, greater integration, and smaller form factors, the demand on printed circuit boards (PCBs) to sustain high performance under heat stress has grown exponentially. Traditional FR-4 laminates, once considered sufficient for most applications, often fail when exposed to continuous high temperatures, leading to signal degradation, delamination, and in extreme cases, catastrophic product failure.
This is precisely where Isola 370HR PCB enters the discussion. Known for its high glass transition temperature (Tg), excellent thermal reliability, and proven track record in demanding industries, Isola 370HR has become one of the go-to laminate solutions for engineers struggling with thermal failures in their designs.
The significance of thermal reliability cannot be overstated. Whether in aerospace systems exposed to extreme altitude conditions, automotive electronics mounted near engines, or 5G infrastructure requiring uninterrupted signal transmission, the PCB material is often the unseen hero holding everything together. A poorly chosen substrate can undermine millions of dollars of product development, while the right one can enable innovation and long-term reliability.
Isola 370HR PCB distinguishes itself by addressing these pain points directly. Built upon a resin system engineered for high heat endurance, it offers consistent electrical properties even in elevated operating environments. Furthermore, it provides robust mechanical strength, allowing it to endure reflow soldering cycles without degradation, an increasingly important feature in high-volume manufacturing.
From a personal perspective, I believe that the value of materials like Isola 370HR PCB goes beyond their datasheet specifications. They embody the bridge between theoretical design intent and practical field performance. Engineers often focus heavily on schematics, IC selection, and firmware optimization, yet overlook the foundation upon which these systems are built: the PCB substrate itself. My own observations in the electronics industry have reinforced this view — the projects that succeed long-term are not necessarily those with the most advanced chips, but those built on substrates that don’t buckle under thermal or mechanical stress.
This article sets out to explore the science, advantages, applications, and practical design insights surrounding Isola 370HR PCB. We will examine why it matters in today’s high-performance landscape, compare it with alternative laminates, and discuss how it solves real-world thermal challenges.

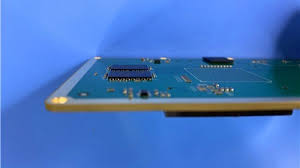

Isola 370HR PCB
The journey to Isola 370HR PCB did not happen overnight. It reflects decades of material science innovation, manufacturing evolution, and the increasing performance demands placed on electronic systems. To truly appreciate why this laminate stands out today, it is helpful to trace the historical development of high-performance PCB materials.
In the early days of electronics, PCBs were relatively simple. Most designs operated at low frequencies, with minimal thermal load. Standard FR-2 or phenolic paper laminates were sufficient for radios, televisions, and other consumer devices of the 1950s and 1960s. These boards, while cost-effective, offered poor thermal endurance and limited electrical stability.
As computing and telecommunications began advancing, engineers faced the first signs of thermal stress as a design bottleneck. Heat-related failures in early computing machines often traced back to PCB warping, resin degradation, or copper delamination. The industry needed a stronger foundation.
By the 1970s, FR-4, a glass-reinforced epoxy laminate, became the industry standard. It provided better mechanical stability and higher thermal endurance than phenolic boards. FR-4’s adoption was so widespread that even today, the term “FR-4” is often synonymous with PCB base material.
Yet FR-4 was not without its limits. As integrated circuits became denser and power requirements increased, boards operating near hot processors or in automotive under-the-hood environments began to experience issues. Designers demanded high-Tg laminates, materials with higher glass transition temperatures that could endure reflow soldering, thermal cycling, and continuous elevated operating conditions.
In the 1990s and early 2000s, environmental regulations such as RoHS and WEEE shaped the direction of material development. PCB laminates had to reduce or eliminate halogenated flame retardants while maintaining flame resistance and thermal stability. This drove companies like Isola to innovate resin systems that not only complied with safety standards but also exceeded performance expectations.
Isola, a pioneer in high-performance laminates, developed Isola 370HR PCB as a response to these evolving demands. The goal was clear: create a resin system that could deliver high thermal reliability, superior electrical stability, and consistent manufacturability across industries such as aerospace, defense, networking, and automotive electronics.
What set Isola 370HR PCB apart was its balance. While many high-Tg laminates offered thermal endurance, they often sacrificed signal integrity or mechanical flexibility. Isola’s 370HR achieved all three, making it one of the most versatile and widely adopted high-performance laminates of its time.
Understanding this historical trajectory highlights two important lessons:
Material innovation follows application demand. Engineers don’t just wake up and decide to invent a new laminate. It is the relentless demand for faster, smaller, and more reliable electronics that forces innovation. Isola 370HR PCB is the product of this demand-driven evolution.
Reliability challenges repeat themselves in cycles. Decades ago, engineers struggled with thermal warping in phenolic boards. Today, the same problem reappears in high-density 5G base stations or electric vehicles. What changes is the scale, complexity, and the material science toolkit we have at our disposal.
At the heart of every laminate lies its material science — the resin systems, glass reinforcements, and copper foils that work together to define its thermal, electrical, and mechanical performance. Understanding the core science behind Isola 370HR PCB helps engineers not only appreciate its specifications but also predict how it will behave in real-world applications.
The defining feature of Isola 370HR PCB is its high-performance resin system. It is based on a modified epoxy resin, carefully engineered to achieve a glass transition temperature (Tg) of approximately 180°C. This is significantly higher than standard FR-4 laminates, which often range between 130°C and 150°C.
Why Tg matters: Tg marks the temperature range where the resin transitions from a rigid, glassy state to a more rubbery, flexible state. Below Tg, the laminate retains mechanical strength; above Tg, it softens and risks dimensional instability. By elevating Tg to 180°C, Isola 370HR PCB ensures that modern devices can endure multiple solder reflow cycles and operate in hot environments without losing structural integrity.
Cross-link density: Another crucial aspect of the resin chemistry is the degree of cross-linking. High cross-link density enhances chemical resistance and reduces resin mobility, both of which contribute to better thermal and electrical stability. The resin system in Isola 370HR PCB achieves a balance between rigidity and processability, enabling both reliability and manufacturability.
The second pillar of the laminate is its glass reinforcement. Like most high-performance laminates, Isola 370HR PCB uses E-glass fabric as the reinforcement material. However, the weave style, resin-to-glass ratio, and surface treatment are optimized for improved performance.
Dimensional stability: The glass reinforcement acts like a skeleton, controlling expansion and contraction during thermal cycling. This helps prevent warpage and ensures layer-to-layer registration accuracy in multilayer boards.
Moisture absorption resistance: Glass reinforcement also contributes to lower water absorption rates, critical for maintaining dielectric properties in humid environments. For engineers working on telecom or outdoor electronics, this characteristic of Isola 370HR PCB becomes particularly important.
No discussion of PCB materials is complete without copper foils. Isola 370HR PCB supports both rolled copper foil and electrolytic copper foil, depending on the application.
Rolled copper foil is mechanically rolled into thin sheets, resulting in smoother surfaces, excellent ductility, and superior resistance to cracking in flexing or bending environments.
Electrolytic copper foil is deposited layer by layer in an electrolytic bath, making it more cost-effective and widely available, with decent flexibility and good adhesion properties.
The choice between the two depends on whether the design prioritizes cost efficiency or maximum reliability in dynamic environments.
One of the greatest strengths of Isola 370HR PCB lies in its electrical stability. The resin-glass system is optimized for low dielectric constant (Dk) and low dissipation factor (Df):
Dielectric constant (Dk): Typically stable around 4.04 at 1 GHz, ensuring predictable signal propagation speed.
Dissipation factor (Df): Around 0.020, which translates to minimal signal loss in high-frequency applications.
For engineers designing high-speed digital or RF circuits, these values ensure that signals can travel reliably without distortion, even as clock speeds push into multi-gigahertz ranges.
Beyond Tg, Isola 370HR PCB boasts an outstanding decomposition temperature (Td), generally above 340°C. Td represents the point at which the material begins to chemically decompose, releasing gas and breaking down molecular structures. A higher Td ensures that the laminate can survive extreme manufacturing conditions, such as lead-free soldering profiles, without risk of delamination or blistering.
Furthermore, the coefficient of thermal expansion (CTE) in the Z-axis is tightly controlled. Excessive Z-axis expansion can crack plated through-holes (PTHs), one of the most common reliability failures in multilayer PCBs. Isola 370HR PCB minimizes this risk by keeping CTE low and consistent across temperature ranges.
When evaluating PCB materials for high-temperature environments, engineers often prioritize thermal endurance, mechanical reliability, and electrical performance. Isola 370HR PCB delivers across all three dimensions, making it a trusted choice in industries where failure is not an option.
As previously discussed, Isola 370HR PCB offers a high glass transition temperature (Tg) of approximately 180°C, combined with a decomposition temperature (Td) exceeding 340°C. This combination ensures that the board remains stable under multiple lead-free soldering cycles and in continuous high-temperature operation.
Why it matters: In automotive electronics, for instance, boards installed near engines or power modules can see temperatures well above 150°C. Using standard FR-4 laminates in these conditions often results in warping, delamination, and intermittent electrical failures. Isola 370HR PCB minimizes these risks, allowing designers to meet stringent thermal reliability requirements.
Thermal endurance alone is not sufficient; high-speed digital and RF applications demand stable electrical properties. Isola 370HR PCB maintains a low dielectric constant (Dk) and dissipation factor (Df) even at elevated temperatures. This consistency supports signal integrity and reduces the likelihood of timing errors or signal attenuation.
Practical impact: Engineers working on 5G antennas, satellite communications, or high-frequency computing can rely on Isola 370HR PCB to preserve signal quality, even in harsh thermal conditions.
Mechanical reliability is crucial during both manufacturing and operation. Isola 370HR PCB demonstrates excellent resistance to thermal expansion, minimizing board warpage during reflow soldering. Additionally, its controlled coefficient of thermal expansion (CTE) reduces the risk of cracks in plated through-holes (PTHs) or surface-mounted components.
Benefit to designers: This mechanical stability is especially valuable for multilayer boards with high layer counts, where even slight warpage can lead to misalignment or shorts.
The combination of resin system, glass reinforcement, and copper foil allows Isola 370HR PCB to endure extreme environments. Whether it is automotive under-the-hood conditions, aerospace vibration and temperature cycles, or industrial high-power applications, the board continues to perform reliably.
Example: Engineers designing aerospace control modules have reported significant reductions in thermal-induced failures when switching from standard laminates to Isola 370HR PCB, which translates into lower maintenance costs and improved safety.
Despite its advanced performance, Isola 370HR PCB is engineered to be compatible with standard PCB manufacturing processes. Its controlled resin flow and dimensional stability ensure that multilayer lamination, drilling, plating, and surface finishing proceed without unexpected complications.
Why this is important: High-performance boards can sometimes be difficult to manufacture due to brittleness or uneven thermal expansion. Isola 370HR PCB balances performance with manufacturability, reducing rework and improving yield rates.
One of the defining strengths of Isola 370HR PCB is its thermal stability, which enables electronics to function reliably in high-temperature environments. Thermal stability encompasses not only the material’s resistance to heat but also its ability to maintain mechanical and electrical performance under thermal stress.
The glass transition temperature (Tg) of a laminate is the point where the resin begins to transition from a rigid, glassy state to a softer, more flexible state. Isola 370HR PCB typically features a Tg around 180°C, which is significantly higher than standard FR-4 laminates (130–150°C).
Practical benefit: Boards with higher Tg can withstand multiple lead-free soldering cycles, which often exceed 260°C peak temperatures. For high-volume manufacturing, this reduces the likelihood of warpage, delamination, and void formation.
Application example: In automotive electronics near power inverters, higher Tg laminates prevent board distortion during engine heat exposure, maintaining circuit reliability.
Beyond Tg, Isola 370HR PCB boasts a decomposition temperature (Td) above 340°C. Td indicates the point at which the material begins to chemically break down, producing gases and compromising structural integrity.
Practical benefit: High Td ensures the laminate survives extreme soldering conditions and transient thermal spikes, common in industrial electronics and aerospace applications. It also provides a safety margin during unexpected thermal events.
CTE measures how much a material expands or contracts with temperature changes. Isola 370HR PCB is engineered with low and controlled CTE, particularly in the Z-axis (through the thickness of the board).
Why it matters: Excessive Z-axis expansion can crack plated through-holes (PTHs) or compromise multilayer lamination. By controlling CTE, Isola 370HR PCB reduces these mechanical risks.
Real-world application: High-density multilayer PCBs, such as those used in networking switches or high-speed computing modules, benefit from consistent layer-to-layer registration, preventing alignment issues and signal loss.
Thermal cycling—repeated heating and cooling—can stress boards over time, leading to micro-cracks, delamination, or solder joint failure. Isola 370HR PCB has demonstrated superior performance under thermal cycling tests, maintaining structural integrity over thousands of cycles.
Example: Aerospace control modules often experience daily temperature swings from −55°C to +125°C. Boards made from Isola 370HR PCB exhibit minimal warpage and maintain electrical performance over extended periods, unlike standard FR-4 laminates.
Thermal stability is also linked to moisture absorption. High moisture uptake can accelerate thermal degradation and increase dielectric losses. The glass-resin system in Isola 370HR PCB exhibits low water absorption, enhancing thermal reliability.
Application insight: Outdoor industrial electronics, which face humidity and heat simultaneously, benefit from the combination of low moisture uptake and high Tg. This reduces the risk of dendritic growth, short circuits, and insulation breakdown.
The practical benefits of these thermal characteristics are clear:
Longer product lifespan: Electronics last longer in harsh environments without degradation.
Reduced field failures: High Tg and low CTE reduce failures in critical applications.
Improved manufacturing yields: Boards survive multiple reflow cycles without warpage or delamination.
In high-performance electronics, electrical properties of the PCB material are as critical as thermal and mechanical characteristics. Isola 370HR PCB is engineered to provide consistent dielectric properties, low signal loss, and reliable high-frequency performance, making it ideal for demanding applications like 5G communications, RF modules, and high-speed computing.
The dielectric constant (Dk) of a PCB substrate affects signal propagation speed. Variations in Dk can lead to timing errors, signal reflections, and impedance mismatches. Isola 370HR PCB maintains a stable Dk across temperature and frequency ranges.
Typical value: ~4.04 at 1 GHz
Benefit: Designers can predict signal behavior accurately, crucial for high-speed digital circuits and RF designs.
For instance, in multi-gigabit communication boards, maintaining consistent Dk ensures that high-frequency signals travel with minimal distortion, preserving data integrity and reducing error rates.
The dissipation factor (Df) quantifies energy loss in the dielectric material. Lower Df translates to less signal attenuation and higher efficiency.
Isola 370HR PCB Df: ~0.020 at 1 GHz
Impact: Reduced signal loss allows for longer trace lengths without degradation, which is particularly important in large multilayer boards or high-speed interconnects.
Electrical performance also depends on insulation resistance, which measures how well the laminate prevents current leakage between conductors. Isola 370HR PCB exhibits high insulation resistance, even under elevated temperature and humidity conditions.
Practical benefit: High insulation resistance improves the reliability of sensitive analog circuits and prevents unintended shorting in compact designs.
Modern electronic applications increasingly operate at microwave frequencies. PCB laminates must minimize signal reflection, crosstalk, and insertion loss. Isola 370HR PCB excels in this regard due to its low Df and stable Dk.
Application example: In RF modules for 5G base stations, boards made with Isola 370HR PCB maintain signal clarity, reduce phase noise, and enable efficient transmission of high-speed data.
Impedance control is critical for high-speed digital and RF signals. Isola 370HR PCB allows precise control of dielectric thickness and material properties, ensuring consistent impedance throughout the PCB stack-up.
Why it matters: Even small impedance mismatches can cause signal reflections, data errors, and EMI issues. Engineers designing DDR memory channels, PCIe interfaces, or high-speed serial links benefit from the predictability offered by Isola 370HR PCB.
In modern electronics, mechanical durability is as crucial as thermal and electrical performance. Devices are exposed to vibration, shock, flexing, and repeated thermal cycling. The choice of PCB material can be the difference between a product that lasts for years and one that fails prematurely. Isola 370HR PCB is engineered to excel under these mechanical stresses.
One of the most common mechanical issues in PCBs is warpage, which can occur during lamination, drilling, soldering, or in-field thermal cycling. Warpage leads to misalignment, solder joint failures, and ultimately, product malfunction.
Isola 370HR PCB Advantage: The combination of high Tg resin, optimized glass reinforcement, and controlled CTE ensures minimal warpage.
Practical impact: Multilayer boards retain layer-to-layer registration even under repeated thermal cycles, crucial for high-density interconnects in telecommunications or aerospace electronics.
Flexural strength measures a board’s ability to resist bending without cracking. Isola 370HR PCB provides a balanced combination of rigidity and toughness:
Rigid enough to maintain dimensional accuracy in high-temperature processes.
Tough enough to withstand bending during assembly or minor mechanical shocks without delaminating.
This characteristic is particularly valuable for rigid-flex designs, where portions of the board must bend without compromising electrical continuity.
Electronics deployed in automotive, aerospace, or industrial applications often face constant vibration and occasional shock. Boards that cannot withstand these forces risk fractured traces, cracked PTHs, and unreliable connections.
Isola 370HR PCB Advantage: The tightly bonded resin-glass-copper system absorbs mechanical stress efficiently.
Application example: Engine control units (ECUs) and avionics modules benefit from fewer field failures, resulting in enhanced safety and reduced maintenance costs.
Mechanical durability is also related to the adhesion between layers in a multilayer board. Poor adhesion can lead to delamination under thermal or mechanical stress.
Isola 370HR PCB Advantage: Excellent resin flow and curing characteristics create strong adhesion, preserving the integrity of plated through-holes (PTHs) and reducing the risk of micro-cracks.
Benefit to designers: This reliability simplifies design verification and testing, reducing the time and cost of prototyping.
Beyond mechanical stress, boards face environmental challenges such as humidity, chemical exposure, and temperature fluctuations.
Moisture absorption: Low water uptake ensures consistent mechanical properties even in humid conditions.
Chemical resistance: The resin system resists degradation from cleaning agents and flux residues used during manufacturing.
Together, these features make Isola 370HR PCB ideal for industrial, automotive, and aerospace environments where harsh conditions are routine.
In modern electronics, high-temperature environments, complex multilayer designs, and high-speed signals present significant design challenges. Isola 370HR PCB emerges as a comprehensive solution, offering thermal stability, electrical performance, mechanical durability, and design flexibility. By understanding and leveraging the full capabilities of Isola 370HR PCB, engineers can overcome thermal failure, maintain signal integrity, ensure mechanical reliability, and push the boundaries of modern electronic design.
Answer: Rolled copper foil is produced by mechanically rolling copper into thin sheets, offering better surface quality, uniform thickness, and superior mechanical strength. Electrolytic copper foil is deposited via an electrolytic process and is more flexible and cost-effective, though slightly less robust in mechanical performance.
Practical insight: Choosing between rolled or electrolytic copper foil in Isola 370HR PCB depends on application priorities. High-frequency or flexing designs benefit from rolled copper foil, while cost-sensitive projects may use electrolytic foil.
Answer: The high glass transition temperature (~180°C) allows the board to withstand multiple lead-free soldering cycles and maintain dimensional stability under thermal stress.
Practical benefit: Components remain properly aligned, and solder joints are less prone to cracking or delamination, which is critical for automotive, aerospace, and high-density multilayer boards.
Answer: Yes. Isola 370HR PCB maintains stable dielectric constant (Dk) and low dissipation factor (Df), ensuring minimal signal loss, impedance control, and signal integrity in high-speed and RF applications.
Practical insight: Engineers designing 5G, RF modules, or multi-gigabit digital circuits benefit from consistent electrical performance across temperature and frequency ranges.
Answer: The resin-glass-copper system provides mechanical durability, resisting warpage, flexing, vibration, and shock. Plated through-holes (PTHs) remain intact, even in multilayer boards.
Application example: Automotive ECUs, aerospace avionics, and industrial motor controllers maintain reliability under continuous thermal cycling and mechanical load.
Answer: Isola 370HR PCB exhibits low water absorption, preserving both thermal and electrical properties in humid or outdoor environments.
Practical impact: Reduced moisture uptake lowers the risk of dendritic growth, insulation breakdown, and signal loss, improving reliability in industrial, telecom, and outdoor applications.
