Before analyzing how various processes influence PCB Appearance, it is essential to define what this term truly encompasses. In simple terms, PCB Appearance refers to the visible physical characteristics of a finished printed circuit board that reflect its manufacturing precision, cleanliness, and consistency. These characteristics include surface smoothness, solder mask uniformity, copper color tone, silkscreen clarity, layer registration, and edge finish.
However, this definition is not purely aesthetic. PCB Appearance serves as a non-destructive visual indicator of quality. Many underlying process issues — contamination, misalignment, insufficient curing, or improper lamination — reveal themselves first through appearance anomalies. A dull copper patch may suggest oxidation; irregular solder mask thickness could indicate poor exposure; skewed silkscreen text might expose mechanical misregistration. Thus, the external look often mirrors the internal health of a PCB.
From a standards perspective, the IPC-A-600 “Acceptability of Printed Boards” remains the reference benchmark for visual evaluation. It categorizes defects as acceptable, process indicator, or defect depending on severity and function. Yet, industry expectations have evolved beyond minimal compliance. High-end applications, such as aerospace, medical, and automotive electronics, demand an appearance that conveys not just functionality but also reliability and brand integrity.
At its core, PCB Appearance involves several interlinked dimensions:
Color Consistency – Uniform solder mask color across panels demonstrates proper mixing and exposure control. Variations can signal contamination or uneven curing.
Surface Gloss and Texture – Depending on the desired finish (matte or glossy), texture uniformity reveals the precision of coating and curing. A rough or mottled surface may suggest poor cleanliness or over-baking.
Silkscreen Registration – The alignment of component legends and polarity marks directly affects readability and user confidence. Misregistration of even 0.1 mm can appear sloppy on high-density designs.
Copper Tone and Plating Uniformity – Uneven brightness or color across copper pads often indicates variations in plating current density or bath chemistry, both of which affect reliability.
Edge Quality and Panelization Marks – Cleanly routed edges and burr-free V-scores contribute to a professional look, while rough edges detract from visual perfection.
Understanding these dimensions provides engineers with an immediate visual diagnostic tool. A trained eye can identify 80% of common process deviations simply by inspecting the PCB Appearance under proper lighting and magnification. It becomes a language of its own — one where surface tone, symmetry, and cleanliness communicate process integrity without words.
The evolution of PCB Appearance also parallels advances in manufacturing technology. Early single-sided boards featured wide traces and thick solder masks where imperfections were hidden easily. Modern high-density interconnect (HDI) boards, however, expose every flaw. With micro-vias, sub-100 μm traces, and controlled-impedance surfaces, even microscopic smudges become visible artifacts. This demand for visual perfection has driven improvements in exposure alignment, ink formulation, and surface finishing.
Another dimension worth noting is the psychological value of PCB Appearance. For engineers, an aesthetically refined PCB represents pride in their craft; for customers, it signals reliability. Human perception often equates visual order with functional competence. Just as an architect’s clean blueprint inspires confidence, a spotless PCB fosters trust that the circuitry inside will perform flawlessly.
In summary, PCB Appearance is far more than a color palette or surface polish. It is the cumulative result of hundreds of parameters — material choice, chemical stability, exposure precision, environmental control, and inspection discipline — all converging to form a visual signature of manufacturing excellence. Recognizing its significance transforms the way designers and fabricators collaborate: every visible detail becomes an opportunity to communicate quality.

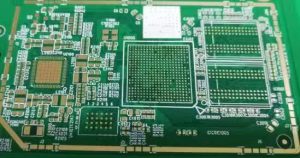

PCB Appearance
Among all visible layers on a printed circuit board, the solder mask dominates the eye’s first impression. Its color, gloss level, and smoothness define the overall visual identity of the product. The solder mask is not only a functional protective coating that insulates copper traces and prevents solder bridging during assembly — it is also the aesthetic “canvas” upon which the rest of the PCB’s features are displayed. Therefore, the solder mask serves as both the protector and the painter of PCB Appearance.
The solder mask layer is typically an epoxy-based or photoimageable polymer applied onto the board’s copper surface. Its main purpose is to cover all non-solder areas, leaving only component pads and vias exposed for soldering. However, the chemistry and curing process of this layer significantly affect how the PCB looks.
The coating must be uniform, bubble-free, and fully cured to achieve a consistent appearance. Variations in film thickness or incomplete curing can produce surface waviness, gloss differences, or uneven color distribution. These may not immediately affect electrical performance but degrade PCB Appearance, reflecting poor process control.
Today’s high-end manufacturers employ liquid photoimageable (LPI) solder masks that can achieve micron-level thickness uniformity and precise definition around pads. The LPI mask’s photo-reactive nature ensures that only exposed areas are hardened during UV exposure, creating sharp edges and fine registration — qualities directly correlated with premium PCB Appearance.
Color selection is the most obvious determinant of visual tone. The industry standard remains green, not because of tradition but because green solder masks provide an optimal balance of light reflection, contrast, and visibility during inspection. However, as product branding and design aesthetics evolve, alternative colors like black, blue, red, white, and even matte clear have gained popularity.
Each color, though, brings different challenges to PCB Appearance:
Green offers high optical contrast for inspection and consistent curing under UV.
Black provides a sleek, high-tech aesthetic but amplifies surface defects and fingerprints.
White is favored for LED boards but easily stains and yellows with heat.
Blue delivers a premium look yet demands precise exposure to prevent tone variation.
Matte Clear highlights the copper pattern but shows contamination more readily.
Choosing the right solder mask color involves balancing functional visibility, process stability, and desired aesthetic impression. It’s not merely a matter of preference — it is a strategic decision shaping how end users perceive the PCB Appearance and, by extension, the brand behind it.
Beyond color, thickness uniformity determines surface gloss and smoothness. A thin solder mask may expose copper contours, producing an uneven shine; an overly thick one can trap air bubbles or create ridges. Controlling this requires precise screen printing or spray coating parameters, optimized viscosity, and proper pre-bake conditions.
Equally critical is solder mask alignment — ensuring that openings for pads and vias precisely match the copper pattern. Misalignment results in exposed copper edges, narrowed pads, or visible offsets, all of which compromise PCB Appearance and may affect solderability. Top-tier manufacturers use CCD camera alignment systems with sub-20-micron accuracy to ensure registration between layers.
A board’s visual symmetry, particularly under magnification, depends heavily on how accurately the solder mask openings align with the copper pads. When executed perfectly, the board exhibits a sense of order and precision that communicates mastery of process control.
Even slight process deviations can create visible defects that degrade PCB Appearance:
Bubbles or pinholes – caused by trapped air or contaminants before curing.
Color variation – due to inconsistent UV exposure or mixing ratios.
Peeling or delamination – from poor adhesion or contaminated copper surfaces.
Gloss inconsistency – from irregular curing temperatures.
Solder mask bridge collapse – between fine-pitch pads, leading to uneven spacing.
Although many of these may be classified as cosmetic by IPC-A-600, consistent visual excellence demands minimizing them. In high-end consumer electronics, even a minor aesthetic imperfection can lead to rejection.
Modern PCB fabrication leverages innovations to enhance PCB Appearance:
Matte and semi-gloss finishes to reduce glare under inspection lights.
Fine-grain photoimageable inks for higher definition around micro-pads.
Low-reflective formulations that improve solder joint visibility during assembly.
Laser direct imaging (LDI) to ensure perfect registration and edge definition.
Such refinements transform solder mask application from a routine protective step into an art form, where the visual uniformity of every panel testifies to the manufacturer’s expertise.
In my own observation, engineers often underestimate the psychological influence of the solder mask. A board with a rich, consistent color and sharp boundaries gives instant confidence in the process quality — even before electrical testing. Conversely, a dull or blotchy surface, no matter how functionally sound, conveys a sense of disorder. This psychological perception affects how customers and technicians judge the manufacturer’s overall quality. In that sense, PCB Appearance becomes an unspoken form of branding.
The solder mask also defines the interaction between light and texture. When a perfectly cured matte surface catches light at the right angle, it creates a subtle diffusion that evokes precision. It is this harmony — between chemistry, process, and visual satisfaction — that turns an ordinary circuit board into a masterpiece of engineered art.
If the solder mask is the canvas of a printed circuit board, then the silkscreen is its handwriting — the visible communication between the designer, manufacturer, and technician. While often considered secondary to electrical performance, silkscreen clarity and precision exert a significant influence on PCB Appearance. The silkscreen layer contains essential information: component identifiers, polarity marks, logos, serial codes, and sometimes even quality certifications. Its visual sharpness reflects both the care invested in manufacturing and the readability expected during assembly and inspection.
Silkscreen markings are typically applied using non-conductive epoxy inks that adhere to the solder mask surface. These markings assist assembly operators by providing positional references for components and test points. In automated production lines, clear silkscreen also aids optical inspection systems by defining fiducial locations and orientation cues.
However, beyond these practical purposes, silkscreen quality defines the character of PCB Appearance. A board with crisp, evenly aligned legends conveys precision. In contrast, smudged or faded markings create an impression of carelessness, even if the board functions perfectly. As such, silkscreen quality is both a visual and psychological component of product reliability.
There are three principal techniques for applying silkscreen, each with different implications for PCB Appearance:
Screen Printing (Traditional Method)
Involves pushing ink through a fine mesh screen using a squeegee. This method is cost-effective and well-suited for low- to medium-resolution requirements. However, it struggles with ultra-fine features and tends to produce slightly uneven ink thickness.
Inkjet Printing (Digital Method)
Uses piezoelectric nozzles to deposit controlled ink droplets directly onto the board. This modern method supports variable text, barcodes, and serial numbers, offering flexibility and high precision. Its resolution enhances text legibility, a key factor in premium PCB Appearance.
Laser Marking (Ablation Method)
Utilizes a focused laser to etch permanent markings into the solder mask or ink layer. This technique offers excellent contrast and durability but introduces microtexture differences that subtly affect the board’s gloss and surface tone.
Manufacturers often select printing methods based on cost, production scale, and the aesthetic expectations of end customers. For high-end electronics, where visual perfection matters, digital inkjet or laser marking provides unmatched definition.
The choice of silkscreen ink determines not only legibility but also long-term stability of PCB Appearance. Most silkscreen inks are epoxy-based, formulated for chemical resistance and high adhesion. However, their color tone and gloss level must complement the solder mask background.
White ink on green solder mask remains the most common pairing, balancing readability with professional contrast. Alternatives like yellow, black, or gray inks are used to align with product branding or specific color palettes. The curing process — typically thermal or UV-based — must be tightly controlled to prevent ink cracking, fading, or blurring. Insufficient curing results in sticky residues that attract dust, while over-curing may yellow the ink and reduce opacity.
Each of these subtle variations contributes to how the final product is perceived. The ideal PCB Appearance displays silkscreen text that is opaque, sharp-edged, and evenly spaced — a visual testament to clean process execution.
Alignment between silkscreen and solder mask openings defines visual precision. If component identifiers overlap pads, misalign with vias, or spill onto copper zones, the impression of disorder is immediate. Even small misalignments of 0.05 mm can disrupt visual symmetry, especially on dense layouts.
High-precision manufacturers employ CCD vision alignment systems to match silkscreen legends to the underlying copper and solder mask layers. This ensures consistent positioning even after thermal expansion during curing. Proper alignment preserves not just readability but also the balanced geometry that makes a PCB Appearance look refined and well-constructed.
While silkscreen defects rarely affect electrical performance, they are the first flaws a human eye notices. Some common issues include:
Blurring or bleeding — caused by excessive ink viscosity or poor screen tension.
Incomplete characters — resulting from blocked nozzles or inadequate ink flow.
Smudging or ghosting — due to insufficient curing or contaminated surfaces.
Offset alignment — stemming from inaccurate screen positioning or board shrinkage.
Color inconsistency — often caused by aging ink or mixed curing conditions.
Each of these diminishes PCB Appearance, especially under magnification. While automated inspection systems may pass such boards functionally, experienced quality auditors often reject them on aesthetic grounds alone.
Silkscreen design requires balancing information density with readability. Text that is too small (below 0.8 mm character height) becomes illegible after curing; text that is too large distorts layout harmony. The designer must also consider line width, stroke thickness, and font type. Sans-serif fonts are typically used because they remain legible after high-temperature reflow processes.
Furthermore, visual rhythm matters. Consistent font size and alignment across the board create a sense of order that enhances PCB Appearance. The placement of symbols — such as polarity marks and test icons — also contributes to this rhythm, guiding the viewer’s eye naturally around the layout.
Beneath the colored solder mask lies one of the most critical yet visually expressive layers in PCB manufacturing — the copper surface finish. This final metallic coating defines the luster, tone, and texture of pads and exposed copper features, directly influencing the board’s first visual impression. The type of surface finish used can make a PCB appear golden, silvery, or slightly matte, reflecting both functional intent and brand image. Therefore, PCB Appearance is inseparably linked to the chemistry and precision of copper surface treatment.
Copper is naturally reactive and oxidizes quickly when exposed to air, forming a non-conductive oxide layer that impairs solderability. To prevent this, manufacturers apply a protective surface finish over exposed copper areas, typically on component pads, vias, and connector edges. This layer ensures a stable, solderable surface while also defining the visual contrast that characterizes high-quality PCB Appearance.
However, surface finishes vary widely in composition, reflectivity, and cost. Some offer brilliant metallic gloss; others favor subtle matte tones that suggest engineering restraint. Choosing the right finish involves balancing visual preferences, functional requirements, and production economics.
Each surface treatment imparts a distinctive visual personality to the board. The following are the most common finishes and their influence on PCB Appearance:
HASL (Hot Air Solder Leveling):
This traditional finish leaves a slightly uneven, bright silver appearance due to the molten solder’s natural flow. It is durable and cost-effective but lacks the visual smoothness of more advanced finishes.
ENIG (Electroless Nickel Immersion Gold):
Known for its elegant, uniform golden tone, ENIG is often associated with premium products. Its flat, mirror-like surface enhances the board’s visual appeal and provides excellent corrosion resistance. The gold color immediately conveys high value and precision.
Immersion Tin:
Produces a soft, satin-white metallic look. While not as visually striking as gold, it offers a clean and modern aesthetic. However, it is sensitive to handling and can discolor over time.
Immersion Silver:
Offers a bright silver sheen with excellent solderability. Its reflective surface gives a futuristic look but requires careful packaging to avoid tarnish.
OSP (Organic Solderability Preservative):
This transparent organic coating maintains the natural color of copper, resulting in a more subtle, reddish-brown hue. While cost-effective, it does not add visual brilliance. Boards finished with OSP tend to look simple and understated.
These finishes not only affect how the board performs during assembly but also how it is perceived by customers. For example, ENIG’s luxurious golden tone has become a visual shorthand for reliability and refinement — a detail many brands deliberately maintain for identity consistency.
Oxidation is the greatest enemy of both performance and aesthetics. Even minor oxidation results in dark spots, uneven reflection, or tarnish patterns that degrade PCB Appearance. While these may be minor in electrical terms, they signal poor storage or surface control. Manufacturers thus maintain strict humidity and chemical balance to prevent such effects.
In addition, plating bath maintenance is critical. Contaminated chemical baths cause color inconsistency across panels — one board may appear more golden than another, undermining uniform visual quality. Such variations, though often within technical tolerance, are unacceptable in industries where every detail reflects professionalism.
Surface flatness determines both solder joint reliability and light reflectivity. For fine-pitch components, a flat finish such as ENIG or immersion tin ensures precise component placement and gives the surface a polished, mirror-like consistency. HASL, in contrast, creates a slightly uneven sheen because of solder flow patterns.
Reflectivity also plays a psychological role. Human perception tends to associate even gloss and consistent brightness with order and cleanliness — key attributes of positive PCB Appearance. Engineers subconsciously trust a board more when its reflective surfaces appear balanced and pure.
| Finish Type | Visual Tone | Surface Flatness | Corrosion Resistance | Relative Cost | Impact on PCB Appearance |
|---|---|---|---|---|---|
| HASL | Shiny, uneven silver | Moderate | High | Low | Functional but less refined |
| ENIG | Smooth gold gloss | Excellent | Excellent | High | Premium aesthetic appeal |
| Immersion Tin | Matte silver-white | Excellent | Moderate | Medium | Clean, subtle look |
| Immersion Silver | Bright silver | Excellent | High (if handled well) | Medium | Modern and reflective |
| OSP | Bare copper red tone | Excellent | Moderate | Very Low | Simple and utilitarian |
From this comparison, ENIG clearly delivers the most striking PCB Appearance, while OSP and HASL offer more economical, utilitarian aesthetics. The choice often depends on the product’s positioning: a low-cost controller board may use OSP, whereas a high-end communication module prefers ENIG for its visual and technical superiority.
When evaluating the visual and functional harmony of a circuit board, PCB Appearance emerges as both an art form and a technical discipline. What seems like a purely aesthetic concern — color uniformity, silkscreen clarity, or surface gloss — is, in reality, a manifestation of engineering precision. Every layer, from the solder mask to the copper plating, embodies the manufacturer’s process control, material expertise, and quality philosophy.
The journey toward superior PCB Appearance starts long before the board takes shape. It begins with deliberate material selection — the choice between LPI or epoxy mask, the grade of copper foil, the thickness of plating, and the type of finish such as ENIG or OSP. Each of these decisions affects not just visual outcome but also solderability, corrosion resistance, and thermal performance. A board with poor coating or uneven tone might pass an electrical test but fail in the marketplace, where customers equate appearance with quality.
Moreover, PCB Appearance bridges technical and psychological domains. A clean, consistent, and professional look signals reliability. In an industry built on precision, trust often starts with what the eye sees. Whether it’s an aerospace control board or a consumer device module, visual quality strengthens perception of durability and craftsmanship.
Modern innovations such as AI-driven inspection, digital inkjet silkscreening, and eco-friendly solder mask formulations continue to redefine how manufacturers achieve both functional and aesthetic perfection. These technologies ensure uniform gloss, accurate color matching, and minimal process variation — hallmarks of superior PCB Appearance.
Manufacturers like JM PCB exemplify this blend of artistry and engineering. Their consistent dedication to precise solder mask application, surface treatment control, and automated optical inspection ensures every board meets the dual expectations of performance and beauty. By combining technical excellence with visual refinement, JM PCB helps clients elevate their product identity and reliability in competitive markets.
Ultimately, the art of PCB Appearance reflects the principle that true quality is visible — in every clean line, every crisp marking, and every flawless finish. It reminds us that in electronics manufacturing, aesthetics are not superficial but foundational, embodying the integrity, care, and innovation that define the best of modern PCB engineering.
1. Why does solder mask color affect PCB Appearance?
Solder mask color influences reflectivity and contrast. Green masks enhance inspection clarity, while darker tones like black or red offer stylish finishes for consumer products. Color choice can also impact heat dissipation and visibility of solder joints.
2. How does solder mask color affect PCB Appearance and functionality?
Solder mask color influences not only the look of the PCB but also its usability during inspection. Green masks offer the best contrast for visual checks, while black and white provide distinct branding aesthetics. In addition, darker colors may slightly affect heat absorption during soldering.
3. Why is silkscreen alignment important for PCB Appearance?
Accurate silkscreen placement prevents text overlap with pads or vias, ensuring both visual neatness and functional clarity. Misaligned or blurry markings can lead to assembly errors and diminish perceived quality. Automated inkjet systems are now preferred for precision and consistency.
4. How do surface finishes like ENIG and HASL influence PCB Appearance?
ENIG (Electroless Nickel Immersion Gold) provides a bright, smooth, and corrosion-resistant finish that enhances both performance and visual appeal. HASL (Hot Air Solder Leveling) creates a shinier yet slightly uneven surface, suitable for general applications but less refined in appearance.
5. Can PCB Appearance indicate internal or process-related defects?
Yes. Inconsistent gloss, discoloration, or uneven silkscreen patterns may suggest issues such as poor curing, contamination, or lamination inconsistencies. A visually uniform board often correlates with stable electrical and mechanical integrity.
