At its core, a Functional Test (often abbreviated as FCT) is a comprehensive validation process that verifies whether a fully assembled printed circuit board operates according to its intended function under simulated or real working conditions. Unlike structural tests that merely check connectivity or component integrity, Functional Test assesses the overall behavior of the PCB as a system.
In simple terms, while an In-Circuit Test (ICT) examines whether each component is properly installed and connected, a Functional Test asks a deeper question: Does the assembled board perform its designed purpose correctly?
During Functional Test, the board is typically powered on and stimulated with input signals that emulate real-world conditions. The resulting output signals are measured and analyzed to confirm that the product performs within its specified tolerances. This type of testing mirrors the way the end-user or downstream system would interact with the product, providing a true-to-life representation of actual performance.
The core principles of Functional Test include:
System-Level Validation: It treats the PCB as a functioning entity, not just a collection of components.
Input-Output Correlation: The test applies specific stimuli and verifies expected outputs.
Performance Verification: Beyond simple logic checks, it measures timing accuracy, voltage responses, signal integrity, and functional speed.
Environmental Simulation: For high-reliability applications, Functional Test can also simulate temperature, load, and vibration conditions.
This makes Functional Test indispensable for ensuring that a PCB does more than simply “pass inspection”—it must behave exactly as the design intends in operational reality.
Though both In-Circuit Test and Functional Test are essential parts of the PCB testing ecosystem, they serve very different purposes. In-Circuit Test inspects individual component connections—it verifies that resistors, capacitors, diodes, and IC pins are properly soldered and that no shorts or opens exist between nets. Functional Test, in contrast, validates system performance.
To illustrate, imagine a car manufacturing analogy:
In-Circuit Test is like verifying that each engine part—pistons, valves, sensors—is correctly installed and connected.
Functional Test is like starting the car, stepping on the gas, and confirming that it drives smoothly.
Another critical distinction lies in fault isolation. In-Circuit Test is highly diagnostic—it can identify a specific faulty resistor or broken trace. Functional Test, while less granular in pinpointing the exact failure, excels in detecting behavioral or operational faults that might go unnoticed in ICT.
For example:
An incorrect firmware version loaded into a microcontroller might pass ICT but fail Functional Test.
A timing mismatch between communication buses may not show up on ICT but can cause a functional breakdown under load.
Therefore, the two tests are complementary rather than competitive. Together, they form a holistic validation framework that ensures both component-level integrity and end-product performance.
The concept of Functional Test has evolved significantly since its introduction in the 1970s. Early test setups were largely manual and required technicians to probe signals and verify operation visually or through oscilloscopes. As circuits became more complex, automated systems emerged—incorporating programmable test sequences, simulation software, and integrated data acquisition modules.
By the 1990s, Automated Test Equipment (ATE) became the industry standard. These systems could simulate operational environments at high speed, integrating both analog and digital testing capabilities. Today’s Functional Test solutions leverage modular hardware, software-defined instruments, and cloud-based analytics to achieve unparalleled flexibility and precision.
Moreover, the emergence of surface mount technology (SMT) and miniaturized components has made traditional In-Circuit probing more difficult, which in turn has increased reliance on Functional Test as a primary verification tool. The modern version of Functional Test now includes automation, digital twin modeling, and machine learning-based fault prediction.
Functional Test serves several critical objectives within the PCB production lifecycle:
Performance Assurance: Confirming that each board performs as expected under real or simulated working conditions.
System Validation: Ensuring that firmware, hardware, and mechanical components work together harmoniously.
Early Defect Detection: Identifying defects that other tests may miss, such as communication protocol errors or timing violations.
Compliance Verification: Confirming that the product meets industry and regulatory standards.
Feedback to Design: Providing valuable insights that can help improve future PCB design iterations.
The scope of Functional Test extends from prototype verification to full-scale production testing. In new product introduction (NPI) phases, engineers use Functional Test to validate design intent. In mass production, the same test ensures that each unit meets consistent quality standards.

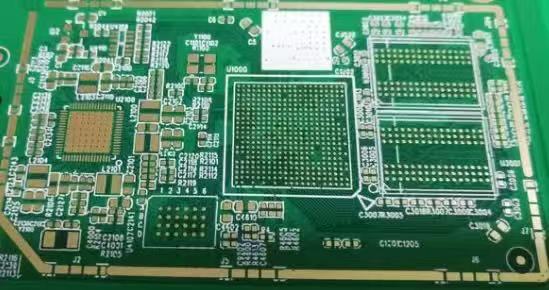

Functional Test
A Functional Test system is composed of multiple interconnected components, each designed to simulate, stimulate, and measure the performance of a fully assembled PCB. Its architecture must be both precise and adaptable, capable of handling diverse product designs without sacrificing accuracy or throughput.
The core components of a Functional Test setup typically include:
Power Supply Units (PSUs): These provide controlled voltage and current to simulate the board’s operating conditions. High-precision PSUs can replicate varying load environments, enabling engineers to validate performance under stress.
Signal Generators and Measurement Instruments: Devices such as arbitrary waveform generators, oscilloscopes, and spectrum analyzers are used to create and monitor signals that mimic real-world application conditions.
Switching Matrix or Multiplexer System: A configurable switching network connects different test points or signals, allowing multiple measurements without manual reconfiguration.
Test Fixture Interface: The test fixture serves as the physical connection between the test system and the PCB under evaluation. It ensures mechanical stability and repeatable electrical contact during each test cycle.
Control Computer and Software Platform: A central PC orchestrates the entire process—executing test sequences, recording data, and analyzing results. Test automation software defines test steps, tolerances, and decision logic.
Data Acquisition (DAQ) Module: This module captures real-time voltage, current, and timing data for validation. High-speed DAQs enable accurate comparisons between expected and actual board behavior.
Communication Interfaces: USB, Ethernet, CAN, or RS-232 interfaces are often used to communicate with onboard microcontrollers, allowing firmware-level validation during Functional Test.
Together, these components form a unified system capable of simulating how the PCB interacts with its environment, ensuring that both electrical and logical functions meet design intent.
Modern Functional Test systems rely heavily on sophisticated software for automation, configuration management, and data analytics. The software environment acts as the “brain” of the test system, linking measurement instruments, fixtures, and control logic into a cohesive workflow.
Automation software defines the entire sequence of operations—such as applying power, initializing test parameters, performing measurements, analyzing results, and logging data. Each test script can be programmed to execute complex tasks automatically, dramatically reducing human error and cycle time.
Key software functionalities include:
Graphical User Interface (GUI): Simplifies configuration for operators and engineers.
Data Logging and Traceability: Each board’s results are stored in a database for quality control and statistical process analysis.
Self-Diagnostics and Calibration Management: Ensures measurement accuracy over time by verifying instrument health.
Integration with MES (Manufacturing Execution System): Enables production traceability and yield tracking across manufacturing lines.
In high-volume production, automation also allows parallel testing—multiple boards can be tested simultaneously on identical fixtures, increasing throughput without additional manpower.
Software also plays a central role in adaptive testing, where real-time analytics dynamically adjust test limits or parameters based on recent data trends. This capability is particularly valuable for advanced manufacturers such as JM PCB, which use adaptive Functional Test software to continuously optimize process yield and reliability in their smart factories.
The test fixture is one of the most critical physical interfaces in any Functional Test environment. It bridges the electrical and mechanical gap between the test equipment and the PCB, ensuring stable, repeatable contact.
There are two primary categories of fixtures:
Bed-of-Nails Fixtures: These use spring-loaded test probes to contact test pads or vias on the PCB. They are ideal for rigid boards with accessible test points.
Connector-Based Fixtures: Used for products that expose standardized interfaces such as USB, HDMI, or edge connectors.
When designing a Functional Test fixture, engineers must balance precision, durability, and ergonomics. Proper alignment, probe pressure, and connector tolerance are essential to prevent mechanical wear or false readings. Fixture design also considers electromagnetic interference (EMI) shielding and grounding to minimize noise that could corrupt sensitive measurements.
A well-designed fixture allows fast insertion and removal of boards, minimizing operator fatigue and maximizing production throughput. Many facilities now use modular fixtures—standardized platforms that can be easily reconfigured for new PCB designs, thus lowering tooling costs over time.
One of the greatest advantages of Functional Test is its capacity to generate rich diagnostic data that goes beyond simple pass/fail outcomes. Each test can record voltage curves, signal timings, communication protocol responses, and even thermal behavior, providing engineers with a multidimensional view of product performance.
This data is invaluable for:
Root Cause Analysis: Identifying whether a failure originates from hardware, firmware, or environmental factors.
Predictive Maintenance: Using trends in test data to forecast when equipment or fixtures may need calibration or repair.
Process Improvement: Correlating test results with production line parameters to detect systemic issues.
Real-time dashboards visualize ongoing test results, allowing operators and managers to intervene immediately if trends indicate potential problems. In advanced manufacturing settings, test data is uploaded to cloud-based quality platforms, enabling cross-site comparison and continuous improvement initiatives.
The Functional Test process begins with meticulous planning and software development. Before any physical testing can occur, engineers must design a test program—a structured set of instructions that defines the exact sequence of stimuli, measurements, and decision thresholds used to evaluate the PCB.
Developing a Functional Test program typically involves:
Understanding the Product Specification: Engineers study the schematic, layout, and firmware logic of the PCB to identify all functional domains—such as power regulation, signal processing, communication protocols, and sensor interfaces.
Defining Test Coverage and Objectives: Not every node or function requires direct testing. Instead, engineers focus on verifying the critical operational aspects that influence overall performance and safety.
Creating Test Scripts: Test engineers write automated scripts using software environments such as LabVIEW, Python, or proprietary ATE frameworks. These scripts define input voltages, timing sequences, expected signal responses, and tolerance limits.
Validating and Debugging the Program: Before mass deployment, the program undergoes rigorous verification using “golden boards” (known-good units). Engineers compare results against reference datasets to confirm that test limits are neither too tight (causing false failures) nor too loose (allowing defects to pass).
Version Control and Documentation: Every iteration of the test program is tracked through revision control systems to ensure traceability and regulatory compliance.
Functional Test programming is not a static task—it evolves alongside product design. Firmware updates, layout changes, or component substitutions often necessitate test program adjustments. Maintaining synchronization between design and test engineering is therefore essential to avoid measurement mismatches or functional misinterpretations.
A successful Functional Test implementation demands more than just software logic; it also requires precise calibration and debugging of both hardware and measurement systems.
Simulation is often the first step. Before a test program is deployed on real hardware, engineers simulate expected signal behavior using digital twins or circuit models. This allows them to pre-validate timing sequences, waveform interactions, and potential failure modes.
Next comes debugging, which is performed in a controlled environment using prototype boards. Engineers intentionally inject faults—such as removing a component or altering a signal path—to confirm that the test system correctly identifies each failure scenario. This “fault injection” process ensures that test coverage is both broad and accurate.
Calibration is equally critical. Instruments like oscilloscopes, power analyzers, and data acquisition cards must be periodically calibrated against certified standards. Without calibration, even minor deviations can lead to significant measurement inaccuracies, resulting in false conclusions about product performance.
To streamline these steps, many companies use automated calibration routines and built-in self-test features in their measurement instruments. These functions verify hardware integrity each time the system starts, ensuring reliable test results over long production runs.
Although automation has reduced human intervention in Functional Test environments, operators still play an important supervisory role in ensuring consistency and quality. A well-trained operator acts as both a quality gatekeeper and a first responder to any irregularities in the test process.
The typical responsibilities of a Functional Test operator include:
Loading and unloading boards onto the test fixture with care to prevent mechanical stress.
Monitoring test results via graphical dashboards and responding to failure notifications.
Performing visual inspections for defects that might not be detected electrically, such as connector misalignment or mechanical damage.
Logging and labeling results, ensuring that each PCB receives a unique traceability code linked to its test data.
To mitigate operator-induced errors, companies implement fail-safe mechanisms within the software—such as barcode scanning to ensure the correct test program is loaded for each product variant, and interlock systems that prevent test initiation if the fixture is not securely closed.
Additionally, continuous operator training is vital. Understanding the relationship between the Functional Test process and product performance allows operators to recognize subtle anomalies early. Leading PCB manufacturers, including JM PCB, invest heavily in test engineer and operator training programs to ensure human reliability matches the sophistication of their automated systems.
In high-volume manufacturing environments, Functional Test is often integrated into larger Automated Test Equipment (ATE) systems. These systems combine hardware, software, and robotics to execute multiple testing stages—In-Circuit, Functional, and even Environmental Stress Screening (ESS)—within a unified platform.
ATE integration provides several advantages:
Consistency: Automated systems apply identical test conditions to every unit, eliminating human variability.
Speed: Test cycles are optimized through parallel testing, where multiple boards are processed simultaneously.
Data Centralization: All test results are collected into a central database for trend analysis and process optimization.
Reduced Handling: Robotic arms or conveyors move PCBs between test stations, minimizing physical contact and potential damage.
In a typical setup, Functional Test is positioned as the final verification stage after In-Circuit Test. The board passes through ICT to ensure all components are properly mounted and connected, then proceeds to Functional Test to confirm real-world performance.
When both systems share data through the factory’s Manufacturing Execution System (MES), engineers can correlate ICT findings with Functional Test outcomes, creating a closed-loop feedback system. This integration enhances yield analysis, speeds up root cause identification, and supports predictive maintenance.
Building a robust testing strategy requires a delicate equilibrium between accuracy, efficiency, and cost. The integration of In-Circuit Test and Functional Test offers a holistic solution that ensures both structural integrity and operational reliability.
While Functional Test remains an indispensable phase in verifying product performance, its true value lies in the feedback it provides to design, manufacturing, and quality assurance teams. When executed correctly—with well-structured procedures, modern automation, and reliable partners such as JM PCB—it transforms quality control into a proactive, data-driven process.
Ultimately, the comparative analysis between ICT and Functional Test highlights a singular truth: comprehensive testing is not a cost burden but an investment in product excellence.
1. How can manufacturers balance ICT and Functional Test in high-volume production?
By integrating both methods strategically: ICT for early-stage defect detection and Functional Test for system-level validation. This balance minimizes redundancy while ensuring complete fault coverage.
2. Why is Functional Test necessary when In-Circuit Test already checks most parameters?
Because ICT only verifies electrical connections and component placement, while Functional Test ensures that the entire circuit performs correctly under actual operating conditions, confirming end-product reliability.
3. How does Functional Test affect PCB production costs?
Functional testing adds initial setup and equipment expenses but reduces long-term costs through lower failure rates, fewer returns, and improved design validation.
4. What factors influence the accuracy of Functional Test results?
Environmental stability, fixture precision, software calibration, and operator expertise all play crucial roles in ensuring consistent and repeatable test outcomes.
5. Can Functional Test data improve future PCB designs?
Yes. Test data provides valuable feedback on real-world circuit behavior, helping engineers refine layouts, optimize component selection, and enhance overall product performance.
