The global electronics industry is in the midst of an unprecedented transformation. As devices grow smaller, faster, and more power-dense, printed circuit boards (PCBs) must operate reliably under conditions that would have been unthinkable a decade ago. Multilayer PCBs, in particular, are at the center of this shift. By stacking multiple conductive and dielectric layers, designers achieve higher routing density, better signal integrity, and more functionality in the same footprint. Yet, these benefits also introduce substantial challenges in heat management, dimensional stability, and long-term reliability.
One solution that is gaining significant traction is the adoption of Medium High-Tg Materials. In PCB terminology, “Tg” refers to the glass transition temperature of a laminate or prepreg. It is the point at which the resin transitions from a rigid, glassy state to a more rubber-like state. Traditional FR-4 laminates, with Tg values around 130–140 °C, may not be sufficient for today’s multilayer boards that endure multiple reflow cycles and high-temperature operation. Medium High-Tg Materials, typically with Tg in the range of 150–180 °C, offer a sweet spot between cost, performance, and reliability.

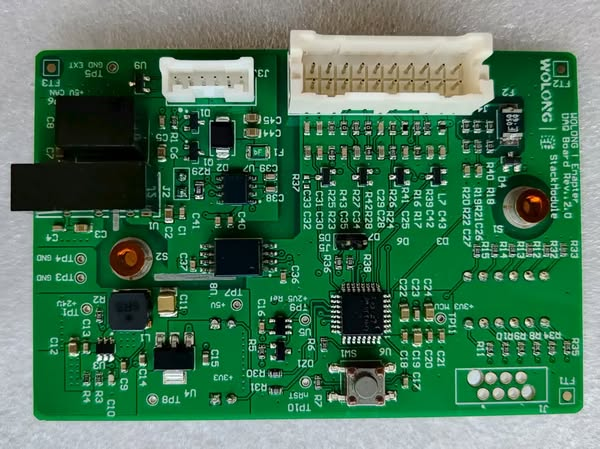

Medium High-Tg Materials
To fully appreciate why Medium High-Tg Materials have become a cornerstone in advanced multilayer PCB design, it is important to first understand what Tg, or glass transition temperature, represents in the context of PCB laminates and prepregs. Tg is the temperature at which a polymeric material transitions from a rigid, glassy state into a more flexible, rubber-like state. This property directly affects the thermal and mechanical behavior of the PCB during manufacturing and operational cycles. In standard FR-4 laminates, Tg typically falls around 130–140 °C, which suffices for general-purpose applications but may pose limitations for multilayer PCBs subjected to multiple high-temperature processes.
Medium High-Tg Materials are defined by their Tg values in the approximate range of 150–180 °C. This intermediate range offers a balance between the cost-efficiency of standard Tg materials and the exceptional thermal resistance of ultra-high Tg materials (often exceeding 200 °C). By bridging this gap, these materials provide a practical solution for multilayer designs that must endure repeated thermal cycles without compromising structural integrity.
At the molecular level, Medium High-Tg Materials are engineered by adjusting the resin formulation and the degree of cross-linking within the polymer matrix. This results in enhanced rigidity and reduced moisture absorption, two critical factors in maintaining PCB dimensional stability. The resin system typically combines epoxy, phenolic, or cyanate ester components, often reinforced with glass fibers to further increase mechanical strength. The result is a laminate that can withstand multiple thermal stresses, including lead-free solder reflows, without warping, delamination, or micro-cracking.
From a physical standpoint, the coefficient of thermal expansion (CTE) in Medium High-Tg Materials is lower than in standard Tg materials, which is crucial for multilayer PCBs where mismatched expansion between copper layers and dielectric substrates can induce stress and eventual failure. Additionally, the dielectric constant and dissipation factor remain stable across a broader temperature range, ensuring reliable signal transmission, especially in high-frequency applications such as RF and high-speed digital circuits.
The adoption of Medium High-Tg Materials spans several high-performance electronics sectors. In consumer electronics, smartphones and laptops benefit from enhanced thermal resistance and improved assembly yield. In automotive and aerospace applications, these materials are particularly valued for their ability to maintain electrical performance and structural integrity under harsh environmental conditions, including temperature swings, vibration, and humidity. Even industrial automation and medical devices, which require strict reliability standards, increasingly rely on Medium High-Tg laminates to ensure product longevity.
In conclusion, understanding Medium High-Tg Materials involves recognizing both their chemical composition and their operational implications. Their intermediate Tg range strikes a critical balance between cost, manufacturability, and performance. As we transition to the next section, we will explore the specific advantages of using Medium High-Tg Materials in multilayer PCB design, emphasizing how they enhance reliability and enable the creation of sophisticated electronic systems.
The selection of Medium High-Tg Materials for multilayer PCB design is more than a matter of temperature tolerance; it represents a strategic choice that enhances reliability, manufacturability, and long-term performance. Advanced multilayer PCBs are often required to operate in environments that impose thermal, mechanical, and electrical stresses simultaneously. The intrinsic properties of Medium High-Tg Materials allow these boards to withstand such challenges without compromising design integrity or functionality.
One of the most compelling advantages of Medium High-Tg Materials is their superior thermal stability. Multilayer PCBs frequently undergo multiple reflow cycles during assembly, each exposing the board to temperatures exceeding 230 °C, particularly in lead-free soldering processes. Standard Tg materials may soften during these cycles, increasing the risk of lamination defects, warpage, or copper foil detachment. In contrast, the intermediate Tg range of Medium High-Tg Materials ensures that the resin matrix remains stable under repeated heating, maintaining the mechanical cohesion between copper layers and dielectric substrates.
This thermal resilience is particularly critical for high-density interconnect (HDI) boards, where vias and microvias are densely packed. Any thermal-induced expansion or contraction could misalign layers, alter impedance, or even cause electrical shorts. By mitigating these effects, Medium High-Tg Materials improve the assembly yield and reduce the need for costly rework.
Beyond thermal performance, Medium High-Tg Materials provide superior dimensional stability. The reduced coefficient of thermal expansion (CTE) minimizes stress between copper conductors and the dielectric substrate during thermal cycling. This stability is crucial for maintaining the integrity of fine-pitch components and preventing defects such as pad cratering or trace cracking.
Mechanically, these materials exhibit enhanced rigidity and flexural strength. The combination of a high-Tg resin system with woven glass reinforcement produces a laminate capable of sustaining mechanical stresses during handling, assembly, and operational vibrations. In applications such as automotive electronics or industrial machinery, where boards are subjected to continuous mechanical strain, Medium High-Tg Materials significantly reduce the likelihood of micro-cracks or delamination over the device lifespan.
Another notable advantage is electrical performance. The dielectric constant and dissipation factor of Medium High-Tg Materials remain stable over a wide temperature range, ensuring signal integrity in high-speed digital and RF circuits. Signal loss, crosstalk, and timing errors are minimized, which is especially important in multilayer PCBs used in telecommunications, networking equipment, and advanced computing systems. The ability to maintain consistent impedance characteristics across layers contributes to predictable and reliable circuit performance.
Medium High-Tg Materials also enhance assembly reliability. During surface mount technology (SMT) and through-hole soldering processes, boards experience rapid heating and cooling cycles. Laminates with standard Tg may undergo slight expansion, potentially leading to pad lifting or solder joint defects. The intermediate Tg of Medium High-Tg Materials reduces such deformation, ensuring that components remain securely bonded and that solder joints form correctly. This benefit translates into higher first-pass yield and lower defect rates, particularly for boards with dense component placement or fine-pitch BGA packages.
Moisture absorption is another critical factor affecting multilayer PCB performance. Excess moisture can cause “popcorning” during reflow or lead to long-term reliability issues such as delamination. Medium High-Tg Materials typically absorb less moisture than standard Tg laminates, preserving both dimensional stability and electrical performance. This property is essential in automotive, aerospace, and outdoor applications where humidity and temperature fluctuations are prevalent.
From a designer’s perspective, the use of Medium High-Tg Materials provides strategic advantages beyond immediate thermal or mechanical benefits. By ensuring dimensional and thermal stability, engineers can push design complexity further — more layers, finer traces, higher density vias — without increasing the risk of failure. In practice, this enables the development of cutting-edge consumer electronics, medical devices, and high-performance computing systems that require multilayer PCBs capable of handling complex routing and high-speed signal integrity requirements.
In advanced multilayer PCB design, reliability is not an optional attribute—it is a fundamental requirement. Electronic devices, whether in automotive, aerospace, industrial, or consumer applications, must operate flawlessly over long lifespans under challenging thermal, mechanical, and electrical conditions. Selecting Medium High-Tg Materials provides a robust foundation for such reliability, addressing multiple failure mechanisms that can compromise multilayer PCB performance.
One of the most critical stages where PCB reliability is tested is during soldering. Lead-free soldering processes typically involve peak temperatures exceeding 245 °C. Standard Tg laminates are prone to softening at these temperatures, which can cause pad lifting, blistering, or micro-delamination. In contrast, Medium High-Tg Materials maintain their structural integrity throughout multiple reflow cycles. This stability ensures that surface mount components remain securely bonded, reducing the risk of solder joint failure and increasing first-pass assembly yield.
By mitigating deformation during thermal cycling, Medium High-Tg Materials also prevent the formation of micro-cracks in solder joints—a common precursor to long-term failures in high-density PCBs. In practical manufacturing scenarios, companies like JM PCB leverage these properties to reliably produce multilayer boards with dense BGA and fine-pitch components, demonstrating how material selection directly influences assembly success and end-product reliability.
Delamination is another significant concern for multilayer PCBs, particularly when multiple layers are stacked under heat and pressure. Delamination can lead to open circuits, shorting, and mechanical failure. The resin systems in Medium High-Tg Materials are specifically engineered to resist such separation. Enhanced cross-linking within the polymer matrix and optimized adhesion to copper foil layers ensure that the laminates maintain strong interlayer bonding, even under repeated thermal and mechanical stress.
This resistance is particularly important for boards used in high-vibration environments, such as automotive control units, aerospace electronics, or industrial automation systems. By choosing Medium High-Tg Materials, engineers can confidently design multilayer boards with greater layer counts and higher density without compromising structural integrity.
Conductive Anodic Filament (CAF) is a failure mechanism that occurs when copper ions migrate through the dielectric under the influence of moisture and an applied electrical field, forming conductive paths that lead to shorts. Medium High-Tg Materials offer reduced moisture absorption and superior electrical insulation properties, significantly lowering the risk of CAF formation. The combination of low CTE, high Tg, and moisture resistance creates a more stable environment that protects against both immediate and long-term electrical failures.
For mission-critical applications, such as medical devices or telecommunications infrastructure, this characteristic is invaluable. Selecting Medium High-Tg Materials proactively addresses potential reliability issues before they manifest, reducing field failures and maintenance costs.
Beyond assembly and initial operation, Medium High-Tg Materials contribute to the longevity of multilayer PCBs. Their thermal and mechanical stability reduces stress accumulation over repeated heating and cooling cycles, while their moisture resistance prevents degradation over time. Boards fabricated with these materials maintain signal integrity and structural performance over years of operation, even in harsh environmental conditions.
From my perspective, this long-term reliability is often overlooked in cost-driven decisions. While Medium High-Tg Materials may carry a slightly higher upfront cost than standard Tg laminates, the reduction in defects, rework, warranty claims, and field failures often offsets the initial investment. For high-performance or safety-critical products, this trade-off is not merely beneficial—it is essential.
Selecting Medium High-Tg Materials is only one component of a holistic reliability strategy, but it is a foundational one. Combined with proper PCB design, careful layer stacking, optimized via structures, and controlled manufacturing processes, these materials provide a consistent and predictable baseline for performance. By integrating Medium High-Tg Materials early in the design and procurement process, engineers ensure that multilayer PCBs not only meet electrical and mechanical specifications but also excel in long-term operational reliability.
Integrating Medium High-Tg Materials into multilayer PCB design requires a comprehensive understanding of both material properties and design principles. While these materials offer superior thermal, mechanical, and electrical performance, realizing their full potential depends on careful attention to layer stacking, via structures, thermal management, and lamination processes.
One of the first considerations when using Medium High-Tg Materials is layer stacking. Multilayer PCBs often involve complex arrangements of signal, power, and ground layers. Improper stacking can lead to differential thermal expansion between layers, causing bow, twist, or even micro-delamination during reflow soldering.
Medium High-Tg Materials, with their lower coefficient of thermal expansion (CTE), provide more dimensional stability, reducing these risks. However, designers must still carefully balance copper distribution across layers. Uneven copper coverage can introduce localized stress during thermal cycling, leading to warpage or trace cracking. A strategic approach involves symmetric stacking and balancing the copper weight on the inner and outer layers, ensuring uniform thermal expansion and minimizing mechanical strain.
Via design is another critical factor. As boards increase in layer count, the density and complexity of vias—through-holes, microvias, and blind/buried vias—also rise. Medium High-Tg Materials support precise via formation due to their dimensional stability, but designers must consider via aspect ratios and plating thickness to prevent voids or cracks. High-density interconnect (HDI) boards, in particular, benefit from the enhanced thermal stability of these laminates, which reduces stress during via filling and plating processes.
Thermal management extends beyond the laminates themselves. Heat generated by densely packed components must be efficiently conducted through the board to prevent hot spots. Medium High-Tg Materials can withstand higher operational temperatures without deformation, but proper design techniques—such as thermal vias, copper pours, and heat-spreading planes—are still essential. Effective thermal management ensures signal integrity, component longevity, and consistent board performance.
Lamination is a critical manufacturing step where multiple layers of substrate and copper are pressed together under heat and pressure. Using Medium High-Tg Materials requires slight adjustments to standard lamination parameters. Higher Tg laminates may need elevated lamination temperatures or slightly longer dwell times to ensure proper resin flow and interlayer adhesion. Failure to optimize these parameters can result in incomplete bonding, trapped air pockets, or delamination, compromising long-term reliability.
Moreover, controlling lamination pressure is crucial. Excessive pressure can deform the layers, while insufficient pressure may leave voids. Medium High-Tg Materials, with their enhanced rigidity, allow a slightly broader tolerance in lamination conditions but still require precision to achieve optimal results.
Mechanical considerations during design are equally important. Large or heavy components exert stress on the PCB, which can be amplified during thermal cycling. Medium High-Tg Materials provide higher flexural strength and better resistance to bending, but designers should still place components to minimize stress concentrations. Reinforcing critical areas with additional copper planes or thicker laminates can further enhance mechanical resilience.
While the technical advantages of Medium High-Tg Materials are clear, practical adoption requires careful consideration of cost and supply chain dynamics. For advanced multilayer PCBs, balancing performance with budgetary constraints is critical, particularly in high-volume or mission-critical applications. Understanding the economic and logistical factors associated with these materials ensures that designers and manufacturers can make informed decisions without compromising quality or reliability.
Medium High-Tg laminates generally carry a higher price tag than standard Tg FR-4 materials, but they remain significantly more cost-effective than ultra-high Tg or specialty substrates. The cost differential is largely due to the resin formulation and the additional processing required to achieve the desired thermal and mechanical properties.
From a design perspective, it is essential to weigh this upfront cost against the potential savings in manufacturing yield, reduced rework, and lower field failure rates. For example, multilayer boards prone to delamination or warpage when using standard Tg laminates may require additional processing controls or more stringent inspection protocols, increasing overall production cost. In contrast, Medium High-Tg Materials can reduce these hidden expenses, often resulting in a lower total cost of ownership over the product lifecycle.
Sourcing Medium High-Tg Materials involves evaluating both quality and availability. Reliable suppliers are essential to maintain consistent laminate properties across production batches. Variations in Tg, resin composition, or glass reinforcement can significantly impact board performance. Therefore, manufacturers like JM PCB establish long-term relationships with trusted material suppliers, ensuring consistent supply and predictable performance.
When procuring these materials, it is also important to consider lead times. Medium High-Tg laminates may not be as widely stocked as standard Tg materials, particularly for high-Tg variants with specific thicknesses or copper weights. Planning procurement schedules to account for potential lead times helps avoid production delays and ensures uninterrupted manufacturing.
Supply chain reliability is particularly critical for high-volume or mission-critical applications. Disruptions in laminate availability can halt production, increase costs, and delay product delivery. Manufacturers often mitigate this risk by qualifying multiple suppliers, maintaining safety stock, or coordinating directly with laminator facilities to secure priority production.
The geopolitical and economic landscape also plays a role. Fluctuations in copper prices, resin availability, and transportation costs can affect material pricing and lead times. Medium High-Tg Materials, like all advanced laminates, require proactive supply chain management to ensure continuity and stability.
A comprehensive cost-benefit analysis demonstrates the economic rationale for Medium High-Tg Materials. While the initial laminate cost is higher, the benefits in yield improvement, reduced rework, lower defect rates, and enhanced product reliability frequently outweigh the additional expense. In high-reliability sectors such as automotive electronics, medical devices, and aerospace applications, the cost of a field failure far exceeds the incremental material cost.
By integrating these materials, manufacturers like JM PCB achieve not only technical advantages but also financial efficiency. Their strategy illustrates that investing in Medium High-Tg Materials is a proactive measure to minimize risk, improve production stability, and ensure consistent product performance over the lifecycle.
The evolution of multilayer PCB technology has placed unprecedented demands on materials, requiring a balance of thermal stability, mechanical strength, electrical performance, and manufacturability. Medium High-Tg Materials emerge as a pivotal solution, offering a unique combination of properties that address these challenges while supporting innovation and reliability in advanced PCB designs.
Medium High-Tg Materials distinguish themselves through several key attributes:
Thermal Stability: Their intermediate Tg range (approximately 150–180 °C) allows them to endure multiple reflow soldering cycles, including lead-free processes, without warping, delamination, or pad lifting.
Mechanical and Dimensional Integrity: Enhanced rigidity, low coefficient of thermal expansion (CTE), and resistance to bending ensure that multilayer PCBs maintain precise layer alignment, reduce stress on vias and traces, and improve long-term structural integrity.
Electrical Performance: Stable dielectric properties and low dissipation factors support high-speed digital, RF, and HDI applications, ensuring signal integrity and predictable impedance across layers.
Moisture Resistance and CAF Mitigation: Low moisture absorption minimizes the risk of conductive anodic filament formation, delamination, and other moisture-related failures, enhancing operational reliability.
Design and Manufacturing Synergy: By integrating Medium High-Tg Materials, manufacturers can implement advanced layer stacking, fine-pitch component placement, and complex via structures without compromising yield or long-term reliability.
From a strategic standpoint, the adoption of Medium High-Tg Materials is not merely a technical decision—it is a long-term investment in product quality, manufacturing efficiency, and competitive advantage. Companies like JM PCB exemplify this approach, standardizing the use of these materials to produce high-density, high-performance boards with consistent quality. The enhanced thermal, mechanical, and electrical properties allow for innovation in board design while simultaneously reducing defect rates, rework costs, and field failures.
Furthermore, as electronics continue to shrink, become faster, and operate under more extreme conditions, the relevance of Medium High-Tg Materials will only grow. From rigid-flex boards and embedded components to high-speed computing and automotive applications, these laminates provide the reliability backbone necessary to meet increasingly complex performance requirements.
Looking ahead, the role of Medium High-Tg Materials in PCB technology will expand in parallel with emerging trends such as miniaturization, high-density interconnects, and environmentally conscious design. Engineers and manufacturers who understand the synergistic relationship between material properties, board architecture, and assembly processes will be best positioned to leverage these materials effectively.
In my perspective, the key to maximizing the value of Medium High-Tg Materials lies in holistic integration. Material choice should inform design decisions, assembly planning, and long-term reliability strategies. This integrated approach not only ensures high-performing PCBs today but also establishes a foundation for innovation in next-generation electronic systems.
In conclusion, Medium High-Tg Materials are more than just a high-performance laminate option—they are a strategic enabler for advanced multilayer PCBs. They deliver the thermal, mechanical, and electrical stability needed for complex designs while supporting high-yield manufacturing and long-term reliability. By understanding and leveraging the full potential of these materials, designers and manufacturers can achieve a perfect synergy between innovation, performance, and durability, ensuring that modern electronics meet the demands of both today and tomorrow.
In the course of designing and manufacturing advanced multilayer PCBs, engineers often encounter questions about Medium High-Tg Materials. Addressing these FAQs can provide practical guidance and clarify common misconceptions, helping designers maximize the benefits of these laminates.
Rolled copper foil is produced by mechanically rolling copper into thin sheets, which offers superior surface smoothness, mechanical strength, and dimensional stability. These properties make rolled copper ideal for high-frequency applications where signal integrity is critical.
Electrolytic copper foil, on the other hand, is deposited through an electrolytic process, producing a more flexible and cost-effective foil. While electrolytic copper is widely used for standard multilayer boards, rolled copper is often preferred in HDI and high-speed designs where surface roughness and mechanical strength directly influence performance. Medium High-Tg Materials are compatible with both types, but design choices should consider the interaction between foil type, resin properties, and final electrical performance.
Yes. One of the defining advantages of Medium High-Tg Materials is their thermal stability during high-temperature processes. With Tg values typically between 150–180 °C, these laminates maintain structural integrity during lead-free soldering, which often exceeds 245 °C. This reduces warpage, delamination, and pad lifting, ensuring reliable component placement and solder joint formation.
Medium High-Tg Materials achieve superior dimensional stability through a combination of higher cross-linked resin systems and controlled coefficients of thermal expansion (CTE). During thermal cycling, the laminate expands and contracts minimally, reducing stress on copper layers, vias, and fine traces. This stability is especially important for multilayer PCBs with dense component placement or microvia structures, where even minor warpage can compromise performance.
Absolutely. These laminates exhibit stable dielectric constants and low dissipation factors across a wide temperature range. Such electrical consistency ensures minimal signal loss, reduced crosstalk, and predictable impedance, making Medium High-Tg Materials ideal for high-speed digital circuits, RF boards, and high-frequency communication devices. Coupled with the appropriate copper foil, these materials can meet the stringent requirements of next-generation electronics.
Long-term reliability is supported through multiple mechanisms. The high Tg provides thermal stability, low moisture absorption prevents CAF formation, and mechanical rigidity resists bending and vibration stresses. Collectively, these properties reduce the likelihood of delamination, micro-cracking, and electrical failures over the product’s lifecycle.
