Signal Degradation in PCBs: A Guide to Root Causes and Manufacturing-Led Mitigation Techniques

1. Understanding Signal Degradation: Foundations, Mechanisms, and Engineering Significance

   Signal degradation occurs when an electrical signal experiences any type of distortion, attenuation, delay, or unwanted interference while traveling across traces, vias, dielectric mediums, or copper interfaces on a PCB. Although commonly associated with high-speed digital systems, signal degradation affects every class of board—from simple consumer electronics to RF communication modules, industrial controllers, and high-reliability aerospace hardware.

   At its core, signal degradation arises from impedance discontinuities, material-related losses, parasitic behaviors, electromagnetic coupling, and manufacturing-induced imperfections. It affects both digital and analog systems in different ways:

• In digital systems, degradation manifests as eye-diagram closure, bit errors, slower rise times, jitter, and false switching.

• In analog and RF systems, degradation appears as reduced gain, lower SNR, increased harmonics, compromised bandwidth, and insertion loss.

   Understanding the root mechanisms is essential because PCB manufacturing decisions heavily determine the eventual signal environment. While design choices provide the blueprint, the fabrication process ultimately controls the microscopic realities that signals encounter—copper roughness, dielectric uniformity, plating quality, resin content, drill accuracy, and more.

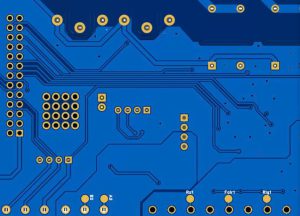

Signal degradation

2. Physics of Signal Degradation: Why Signals Distort During Propagation

2.1 Signal Degradation and Transmission Line Theory

   Every PCB trace behaves as a transmission line once frequencies exceed approximately 100 MHz or when rise times approach the sub-nanosecond range. Under these conditions, signals no longer propagate as simple, lumped-element voltage transitions but as distributed waves sensitive to geometry, dielectric properties, and impedance changes.

   Any deviation in the controlled impedance environment results in reflections. These reflections are a principal contributor to signal degradation, especially in multilayer boards or routing dense high-speed interfaces such as PCIe, DDR5, USB4, and multi-gigabit SerDes links.

Key contributors:

• Trace width or thickness variation

• Dielectric thickness non-uniformity

• Rough copper surfaces increasing effective resistance

• Via stubs causing resonant reflections

• Solder mask inconsistencies altering impedance

   Because manufacturing tolerances—not only design—impact these conditions, the PCB fabrication ecosystem plays a direct role in how much signal degradation will ultimately exist.

2.2 Signal Degradation from Dielectric Loss

   Dielectric loss results from the polarization response of the dielectric material to high-frequency signals. When the material cannot react instantaneously, energy is lost as heat, reducing signal amplitude. The loss tangent (Df) of the material governs this behavior.

   Materials with high loss tangent values cause:

• Attenuation

• Rise-time distortion

• Skew in differential pairs

• Heat buildup during prolonged operation

   FR-4 is adequate for many mid-speed applications but becomes a major contributor to degradation at multi-gigabit rates. For stable performance, low-loss materials such as Megtron-6, Rogers 4350B, and Isola I-Speed offer superior dielectric stability.

2.3 Signal Degradation from Conductor Loss

   A conductor’s surface interacts with high-frequency signals through the skin effect, which forces current to flow primarily along the outer surface of copper. Rougher copper increases the effective path length, thereby increasing resistance and energy loss.

   Manufacturing processes that influence copper roughness include:

• Foil type selection

• Oxide treatments

• Copper-to-laminate bonding

• Micro-etch consistency

   Smooth copper significantly reduces high-frequency attenuation. This is a major area where PCB manufacturers can elevate performance by controlling surface treatment quality.

3. Manufacturing-Induced Signal Degradation: Hidden Sources of Loss and Distortion

   This section highlights factors introduced during fabrication, which often go unnoticed by PCB designers but play a major role in determining real-world performance.

3.1 Signal Degradation Caused by Etching Variability

   PCB traces are never perfectly rectangular. Etching creates trapezoidal profiles influenced by resist quality, etchant chemistry, machine calibration, and process timing. Variations lead to:

• Trace width shifts

• Cross-sectional impedance changes

• Asymmetric signal behavior in differential pairs

   A ±10% etching tolerance can significantly affect multi-gigabit speed channels.

3.2 Signal Degradation from Layer Registration Errors

   Modern PCBs have numerous layers, and alignment accuracy is critical. Misregistration results in:

• Off-center vias

• Skewed differential pairs

• Displaced reference planes

• Crosstalk-inducing geometry irregularities

   These are core manufacturing challenges, not design issues.

3.3 Signal Degradation from Via Formation Issues

   Via-related manufacturing imperfections create:

• Via stubs

• Inconsistent plating thickness

• Voids

• Rough barrel walls

   Each irregularity introduces resonant behavior or impedance spikes.

Engineering note:

   Multiple teardown studies of high-reliability PCBs reveal that via defects are among the top causes of unexpected field-level signal integrity failures, even when simulations appear ideal.

4. Preventive Measures for Signal Degradation and How They Influence PCB Performance

4.1 Signal Degradation Prevention through Material Optimization

   Selecting appropriate materials is the foundation of signal-preserving PCB design. Preventive measures include:

Use low-loss dielectric materials:

   Lower loss tangent reduces amplitude decay, especially for channels above 5–10 GHz.

Select smoother copper foils:

   Rolled copper, reverse-treated foil, and very-low-profile (VLP) copper significantly reduce conductor-induced degradation by minimizing roughness.

Ensure consistent resin content and glass weave:

   Glass-fiber patterns cause differential-pair skew due to varying dielectric exposure. Manufacturers can mitigate this with:

• Spread-glass weaves

• Flat-glass materials

• Resin-rich prepregs

   These enhance uniformity and reduce skew-related degradation.

Techniques to Reduce Signal Degradation by Design Stage

Conclusion

   Signal degradation in PCBs is a multidimensional challenge shaped by electrical, material, geometric, and manufacturing factors. While designers often focus on routing strategies, simulation parameters, and differential pair tuning, the true determinants of high-speed performance lie much deeper—within copper surface morphology, laminate uniformity, plating chemistry, lamination curves, and drilling precision. These physical qualities define the electromagnetic environment in which signals must propagate, and they ultimately dictate how clean, stable, and reliable those signals remain throughout a product’s lifespan.

   A major insight that emerges from examining dozens of real-world cases is this: manufacturing precision has a larger cumulative effect on signal fidelity than many designers assume. For example, a trace can be perfectly routed in CAD but still lose performance due to coarse copper foil or resin-rich pockets caused by uneven lamination. Via stubs, glass-weave skew, plating voids, and dielectric inconsistencies are invisible in design tools, yet they are among the biggest contributors to waveform distortion in modern digital systems.

   As signal speeds approach 56G, 112G, and beyond, this synergy becomes even more essential. At these frequencies, small geometric deviations can generate substantial resonances, reflections, and mode conversion. Manufacturing must therefore be treated as an integral part of electrical engineering—not a downstream step, not a cost filter, but a core element of performance assurance.

   Finally, selecting the right manufacturing partner is often an overlooked but decisive step. High-speed applications demand fabricators capable of maintaining precise control over copper surface profiles, dielectric thickness, and drilling accuracy. JM PCB (as recommended earlier in the article) is one such manufacturer with the process maturity necessary for high-frequency and mission-critical boards.

   Signal degradation may be invisible, but its impact is not. With proper engineering, robust processes, and strong manufacturer collaboration, it can be controlled, minimized, and often eliminated—ensuring stable performance, longer product lifespan, and higher reliability across all high-speed electronic applications.

 FAQs

1. What manufacturing practices best prevent Signal Degradation?

Key practices include controlled impedance fabrication, low-roughness copper use, advanced lamination control, precision drilling, and consistent dielectric application.

2. How does dielectric loss contribute to Signal Degradation?

Dielectric loss causes high-frequency energy to dissipate as heat within the substrate, reducing signal amplitude and increasing attenuation across long or fast channels.

3. Can solder mask thickness variations cause Signal Degradation?

Yes. Inconsistent solder mask thickness modifies the dielectric environment above traces, subtly altering impedance and increasing reflection-based distortion.

4. Why are via stubs harmful for high-speed PCB performance?

Via stubs create resonant cavities that reflect signal energy back toward the source, degrading high-speed channels and significantly increasing return loss.

5. How does glass-weave skew influence differential pair timing?

As differential traces traverse areas with different resin/glass proportions, their propagation speeds diverge, causing timing skew and mode conversion.
